Product Description:

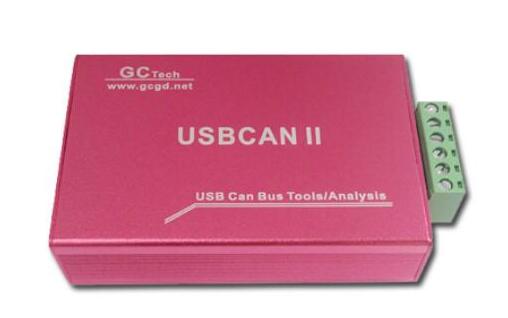

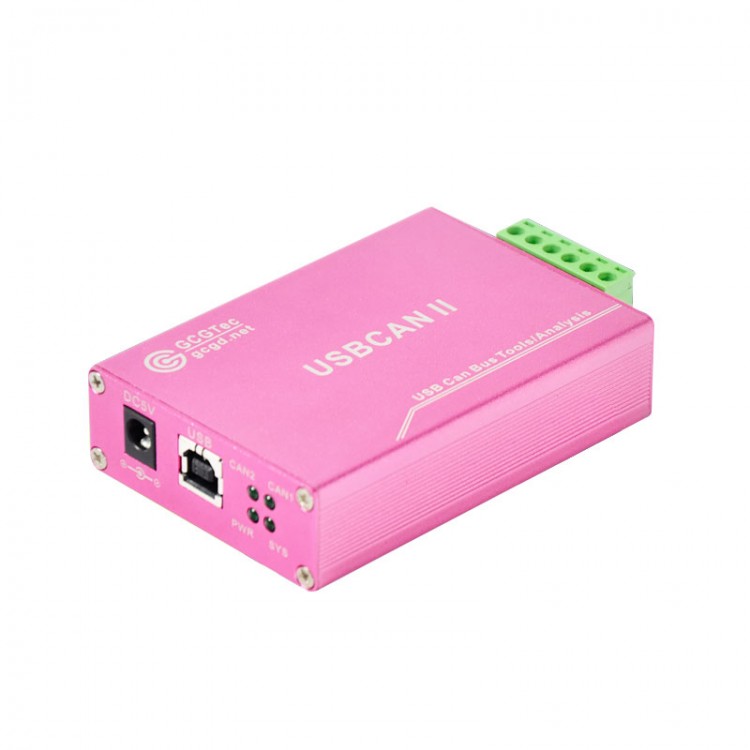

- USBCAN-II Pro (ECAN Pro) can be used to develop, test, manage and maintain CAN networks, record, send and receive and analyze CAN bus data. At the same time, the device has the characteristics of small size, plug and play, and is also the best choice for users of portable systems.

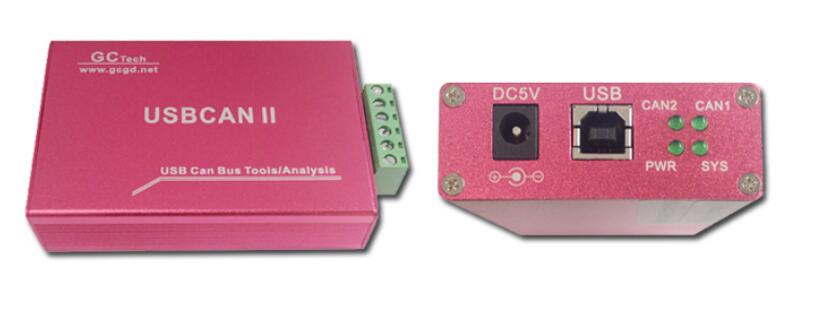

- USBCAN-II Pro compared with the single channel equipment, added a completely independent CAN channel analysis, which makes it possible to use some single channel device does not have the function, such as monitoring two CAN bus, intelligent CAN relay, offline offline; increase the DC5V power supply interface, can give offline and offline CAN relay mode of power supply in the industrial field; at the same time we have to do the upgrade hardware quality again.
- USBCAN-II Pro (ECAN Pro) device can be compatible for USBCAN-I/II/I+/II+/2A,plug and play.

Parameter:
- Interface form:OPEN 6
- CAN channnel value:2
- CAN standard:confirms to the ISO 11898 standard,support CAN 2.0A,CAN2.0B
- CAN baud rate:5K~1M all the standard baud rate and most special baud rate
- Isolation level:1500V
- Support software:ECAN Tools,CAN Test,CAN Pro.
- Operation system:Windows 2000/XP/2003/7/8/10
- Secondary development:Support VC,VB,C#,Labview,LabWindows,Delphi7....,ect mainstream development environment.
- Linux:Support (If you want to use it in linux environment,you need to explain in advance)
- Working temperature:-40℃~+85℃
- Outline dimension:103x64x23 (LxWxH)
- Custom & OEM:Support software,driver,hardware,shell custom or oem.

Features:
1.baud rate automatic identification
2.smart relay mode (only USBCAN-II Pro supports this function)
3.Smart offline mode (only USBCAN-II Pro supports this feature)
4.intelligent filtering
5.advanced shielding function
6.error frame display and bus status display
7.data transmission diversification
8.data classification display
9.data storage


USBCAN Analyzer general CD download:Click here

CAN Pro:
1.protocol analysis
2.trigger settings
3.data playback, offline playback
4.physical quantity extraction and graphic display function

Advanteges:
- Industrial grade products
- Super encryption
- High precision hardware timestamp
- High-speed data transceiver
- Secondary development

Package List:
- 1 x USBCAN-II Pro (ECAN Pro)
- 1 x CD
- 1 x 1.8m USB wire
- 2 x 20cm Dupont Line
- 1 x 2.5mm screwdriver
- 2 x 120 ohm termination resistance
