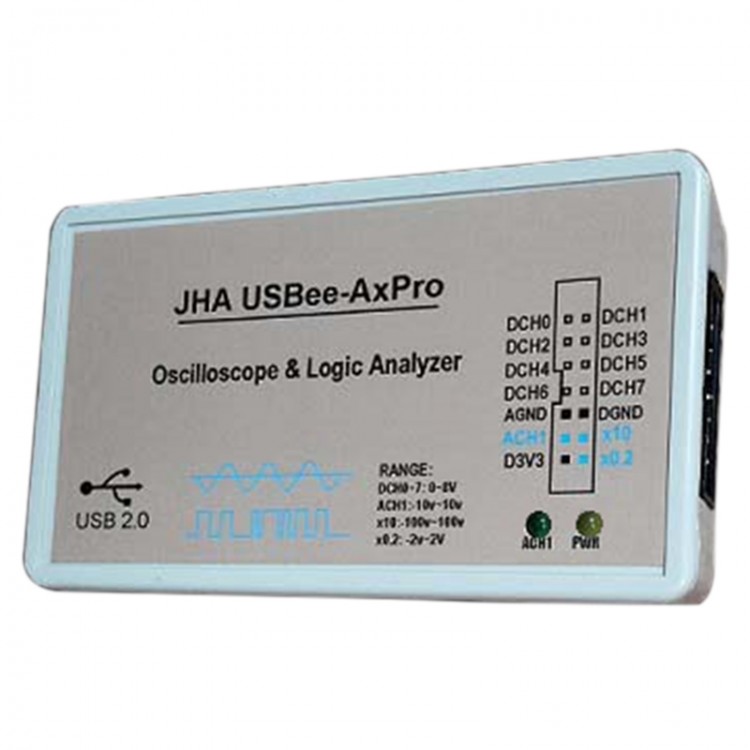

USBee AX Pro USB Oscilloscope + Logic Analyzer + Dupont Cable

USBee AX Pro USB Oscilloscope + Logic Analyzer + Dupont Cable

Description:
- The exclusive function: Simulation of X1 (ACH1), X10, x0.2 three input, can meet the general measurement (+/-10v, the X1 input), and the high voltage measurement (+/-100v, X10 input end, the software displays X10 is the actual voltage value), but also to meet the low voltage high precision measurement (range + / - 2V, resolution 15MV, x0.2 input, the software displays x0.2 real voltage value). Another port D3V3 is the interface of the output 3.3V provided by the instrument, and can provide no more than 100mA current output.
- the analog input has the compensation capacitor, the measurement waveform is accurate, especially the measurement of the high frequency signal is more accurate, and the analog bandwidth reaches 5Mhz.
- all analog and digital inputs are Schottky diode protection, comprehensive protection of the instrument and computer.
- 8 channels digital logic analyzer (supports the I2C, SPI, USB full speed and low speed, can, asynchronous serial port, 1-wire protocol and customer custom protocol analytical), single trace oscilloscope signal simulation, 8-Channel digital signal generator, voltage meter, frequency meter, pulse counting device etc. function. PC software compatible with AX Pro USBee.
- This product is USBee AX-Pro enhanced version, USBee suite with operators, support, with eight way digital logic analyzer, road simulation signal oscilloscopes (some types of online USBEE is known as 2 analog input channel, in fact, the interior is a ad, one can only display a waveform, just can channel soft switch, the actual meaning is very low).
