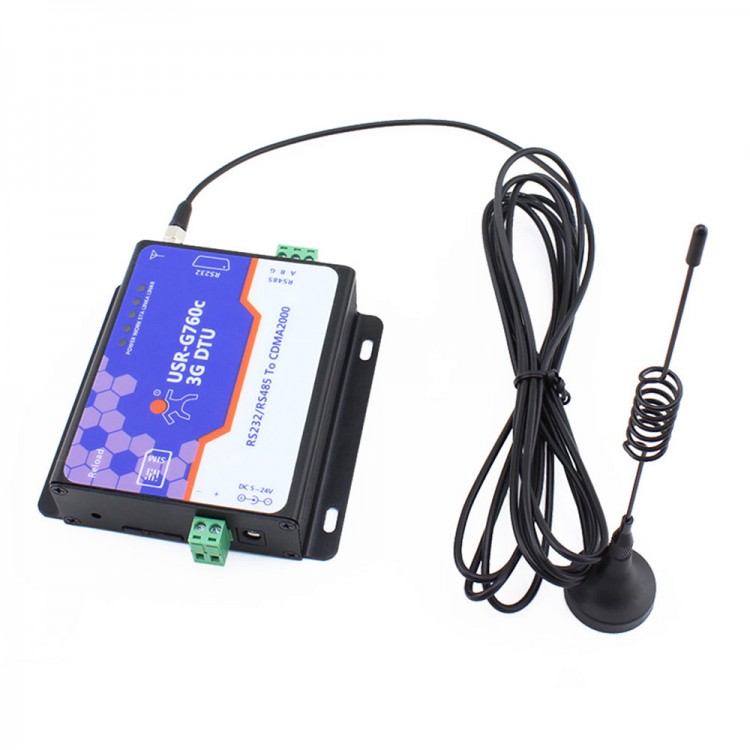

USR-G760c 3G DTU Wireless Internet Access Module RS232 RS485 to CDMA2000
Introduction

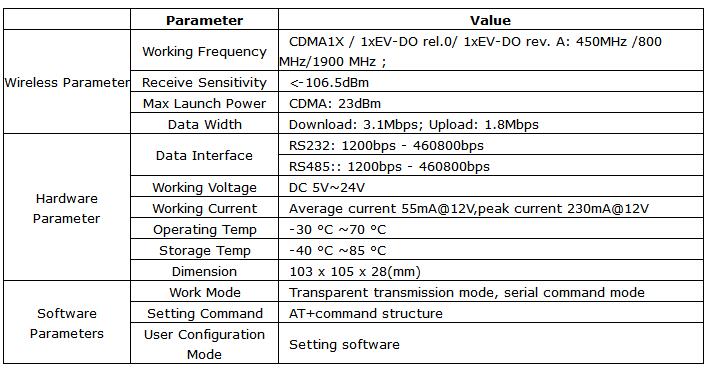

USR-G760c is a wireless terminal device which supports CDMA2000 1xEV-DO Revision 0 and A network.The DTU supports frequency of 450MHz, 800MHz and 1900MHz, and it has RS232 and RS485 interface. User can integrate it to system to realize data transmission based on CDMA2000.
Feature
- Support CDMA2000 1xEV-DO Revision 0 and A network
- Support 2 connections online at the same time, support TCP and UDP
- Support register package and heart beat package
- Support remote parameter setting via SMS message

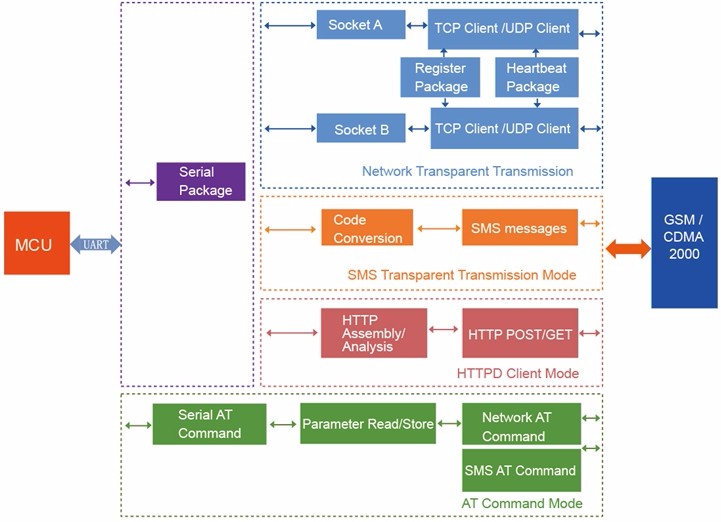

- Support 3 work modes: SMS transparent transmission mode, network transparent transmission mode and HTTPD mode
- Support sending English/Chinese SMS with simple commands
- Class RFC2217,can dynamically modify serial parameter of module via network
- RS232/RS485 interface
Package List:
- 1 x 3G DTU
- 1 x 12V power adapter
- 1 x Antenna
- 1 x Cable
