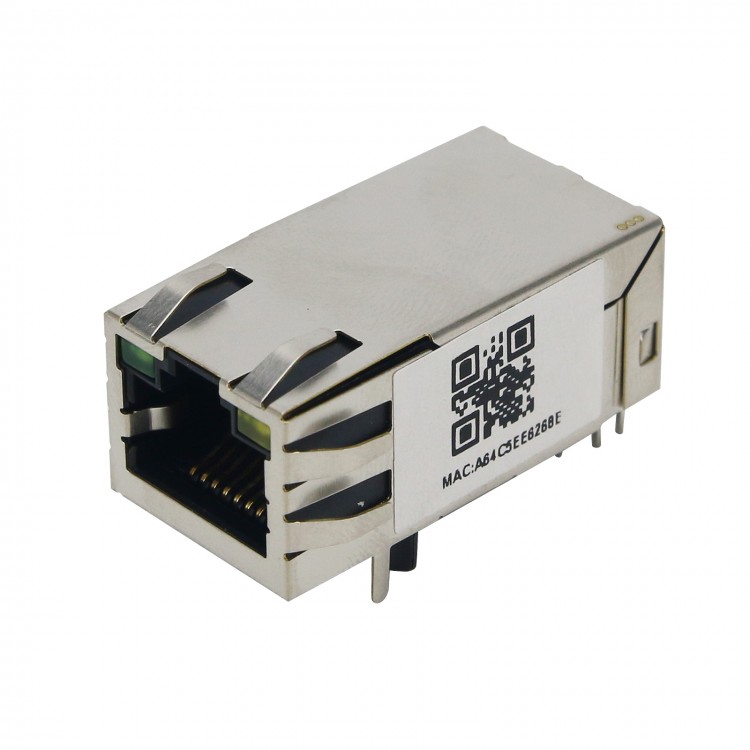

USR-K3 Industrial Super Port Serial TTL UART to Ethernet Module with Cortex M4 Kernel

USR-K3 Industrial Super Port Serial TTL UART to Ethernet Module with Cortex M4 Kernel

Introduction:
USR-K3 is the high-performance and industrial version of Super Port.It is an embedded serial networking module,whose function is to realize bidirectional transparent transmission between TTL and Ethernet.The amazing part of K3 lies in its Ethernet port integration design.You can apply K3 to your products to realize networking communication.User can directly process data interaction through network and device to realize remote data acquisition, remote control and management.

Specification:

System Information
- Processor: Cortex-M4
- Frequency: 120MHz
- Flash: 512K byte

Ethernet
- Port Number: 1
- Interface Standard: 8 pin RJ45
- Rate: 10/100 Mbps，MDI/MDIX,auto switch between cross and direct connection
- Protection: 2KV electromagnetism isolation
- Network Protocol: IP，TCP，UDP，DHCP，DNS，HTTP，ARP，ICMP，Web socket，Httpd client
- Buffer: Max. 16k bytes buffer

Serial
- Port Number: 1
- Interface Standard: TTL: pin type 3.3V
- Data Bits: 5，6，7，8
- Stop Bit: 1，1.5，2
- Check Bit: None，Even，Odd，Space，Mark
- Baud Rate: TTL:600 bps ~ 1024K bps
- Flow Control:None
- Buffer: send and receive 800 byte bytes respectively
- RS-485 Pull-up and Pull-Down Resistor:  null,reserved 485 send-receive control pin

Software
- Virtual Serial（USR-VCOM: Windows 2000 or higher（32 bit/64 bit）
- Configuration: built-in webpage,computer set-up software,serial command

Basic Parameter
- Size: 33.02 x 19.01 x 19.15 (mm) (including clips)
- Operating Temp.:-40 ~ 85°C(industry)
- Storage Temp.: -40 ~ 85°C，5 ~ 95% RH (no condensation)
- Input Voltage: DC 3.3
- Working Current: 120mA（115~125）@ 3.3V
- Power: <1W

Package included:
- 1* USR K3 Industrial Super Port
