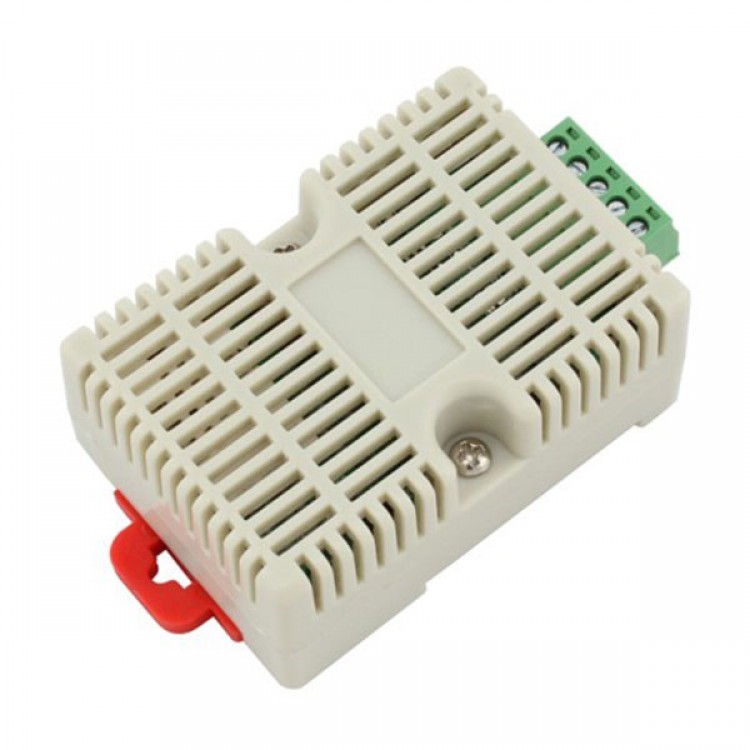

USR-SENS-WSD Temperature Humidity Acquisition and Transmission Module
There are three output types optional *RS485/RS232/TTL*,pls tell us the type you need,thx!
Specification:
- Baud rate: 1200 / 4800 / 9600 / 19200 / 38400 / 57600
- Data bit: 8, unconfigurable
- Parity bit: no/odd/even
- Stop bit: 1/2
- Take effect after configuration, power off and power on again.
Feature:
- DATA/VCC/GND/RXD (RS85-A)/TXD (RS485-B) five interface, simple and reliable, easy to expand;
- Selectable RS232/RS485/TTL signal transmission
- The data transmission based on MODBUS industrial control protocol, reliable performance, good compatibility, easy for network;
- Support simple character instruction, suitable for single module used in simple applications
- Small size, easy to install
- Aimed at agricultural applications for example moistureproof processing, can be used for humid environment, such as greenhouses
Environment:
- Measuring temperature: - 40~+80℃, Resolution: 0.1 ℃, Accuracy of +/- 0.2 ℃
- Measurement humidity: 0%~100% (RH) relative humidity, Resolution: 0.1% RH, Accuracy: +/- 2% RH in the environment of temperature 25 ℃;
- Working temperature: -20~+80 ℃;
- Working humidity range: 0%~100% relative humidity (RH)
- Input: DC5V
- Data format: serial MODBUS protocol, simple ASCII character instruction: “READ”, “AUTO”, “STOP”
- Module IP is configurable, range from 1~247
Package:
- 1pc USR-SENS-WSD Temperature Humidity Acquisition and Transmission Module
