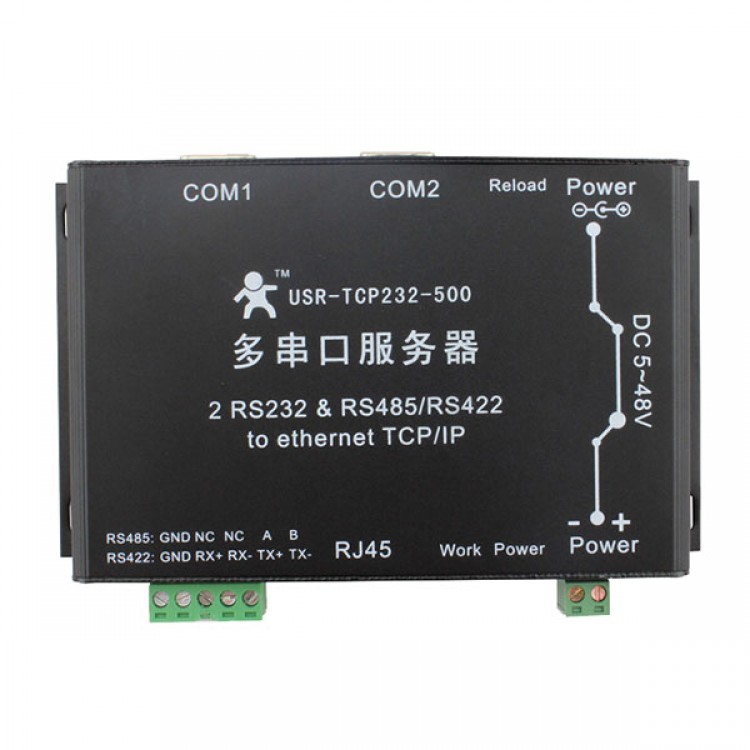

USR-TCP232-500 DualL Serial RS232 And RS485 Or RS422 To Ethernet Converter Device

Availability: In stock, usually dispatched in 1 business day

  • Price:$73.17
  • Price in reward points: 732 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $71.71 $70.24 $68.05 $65.12 Contact US
Quantity:

USR-TCP232-500 DualL Serial RS232 And RS485 Or RS422 To Ethernet Converter Device

Specification:
- Support WEB to UART
- Support DHCP and DNS
- Support Httpd Client
- Support RTS/CTS hardware flow control
- Support webpage, software and command setup
- RS232 RS485 can work at the same time.

Feature:
- 3 COM in total, can set port and work mode independently, work independently
- 2 RS232 interface, support RTS/CTS hardware flow control
- 1 RS422/RS485 compatible interface, can only use one of them, auto-select
- Support TCP Server, TCP Client, UDP, UDP Server, HTTPD Client, multiple working mode
- Support Serial port baud rate up to 230400
- 5-48V wide input voltage range
- Provide DC 3.5 power outlet, 5.08 terminal power supply port
- 2 DB9 socket ninth feet can also be connected to the power supply to power on the sensor or power on the device through serial connections
- The built-in web page, also parameter setting via web, can customize web pages for users.
- Can also set via UDP, provide the set up protocol and software source code.
- Reload button, a key restore default Settings.
- RJ45 status indicator light, RJ45 interface built-in isolation transformer, 2 KV isolation.

Package:
- USR-TCP232-500 *1
- Female to Female serial cable *1
-  RJ45 cable *1
- Power adapter *1
