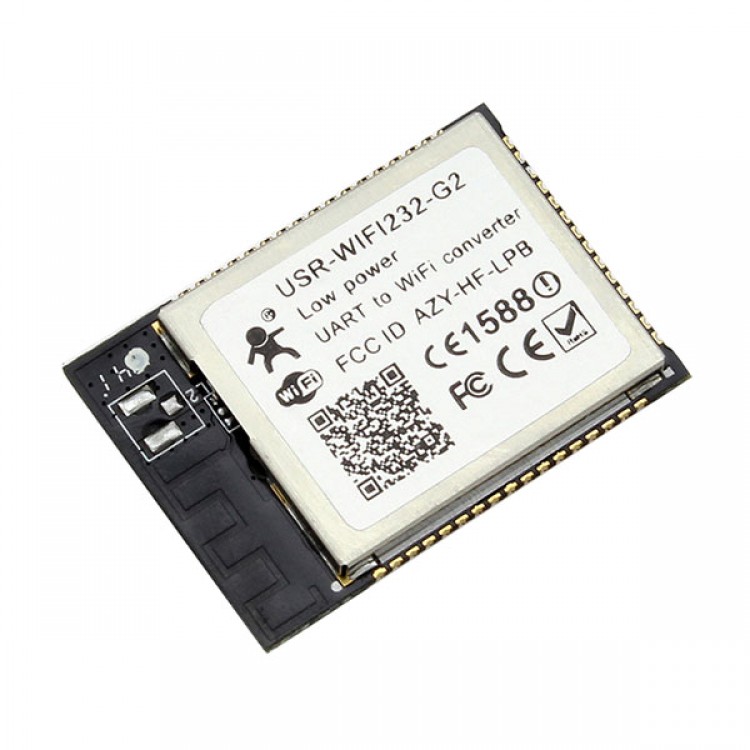

USR-WIFI232-G2A TTL Level Serial UART to WiFi Module for MCU/PLC

Availability: In stock, usually dispatched in 1 business day

  • Price:$13.26
  • Price in reward points: 133 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $12.99 $12.73 $12.33 $11.80 Contact US
Quantity:

USR-WIFI232-G2A TTL Level Serial UART to WiFi Module for MCU/PLC

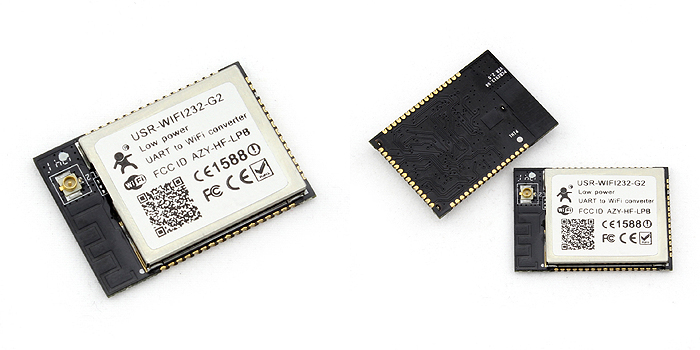

USR-WIFI232-G2a UART to WIFI Module
- Ultra low power: standby power consumption 10ma@3.3v only
- Support WPS function, have been tested with more than 50 types of routers
- Support AP/STA/AP+STA mode and 5 channnel TCP link
- Support WPS/Smart Link Function,provide Android/Iphone APP
- This module is on-board antenna.
- Jinan USR IOT Technology Limited:

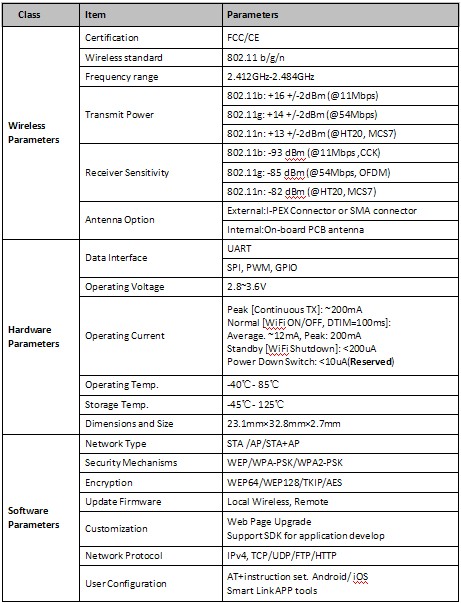

Character:
- Support IEEE802.11b/g/n wirless standards
- Based on Self-developed High cost effective MCU
- Ultra-low-power for battery applications with excellent power save scheme
- Support UART/SPI/PWM/GPIO Data Communication Interface
- Support Work As STA/AP/AP+STA Mode
- Support Smart Link Function (APP program provide)
- Support Wireless and Remote Firmware Upgrade Function
- Support WPS Function
- Support Multi-TCP Link (5 Channel) Apllication
- Support Soft Key Power Control(Reserved)
- Support Internal/External(I-PEX/SMA) Antenna Option
- Single +3.3V Power Supply
- Smallest Size: 23.1mm x 32.8mm x2.7mm
- FCC/CE Certificated

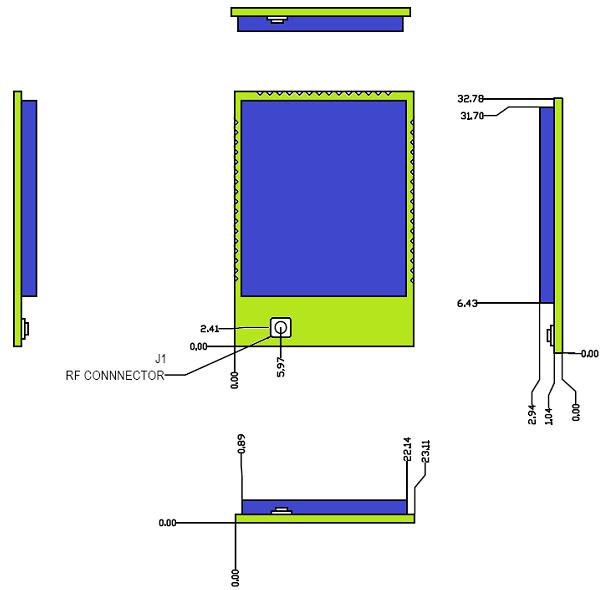

Size:

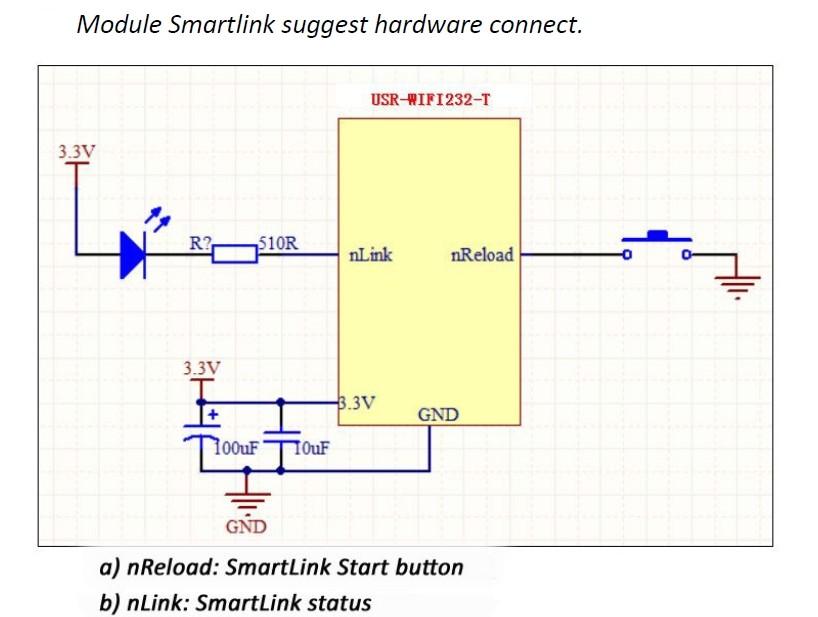

Smart Link

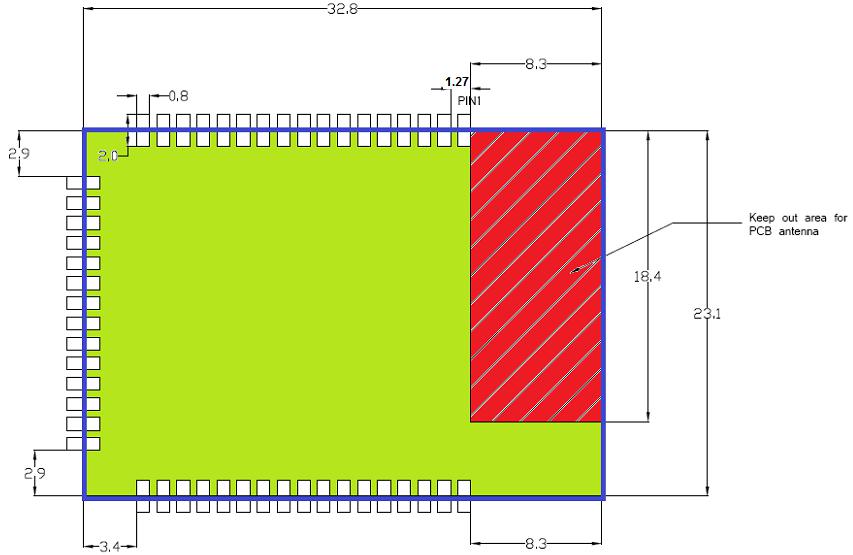

PCB Size:

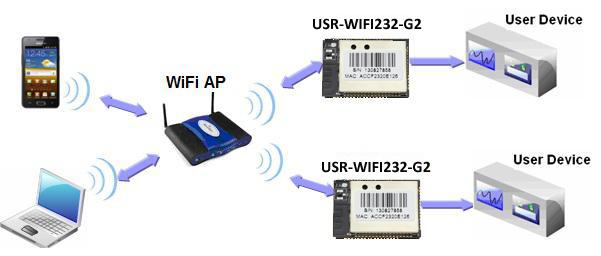

Network on AP Mode:

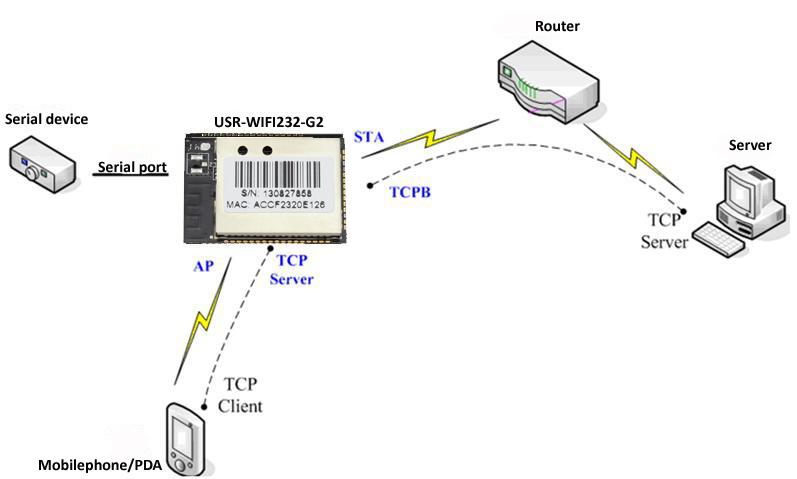

Network on AP+STA:

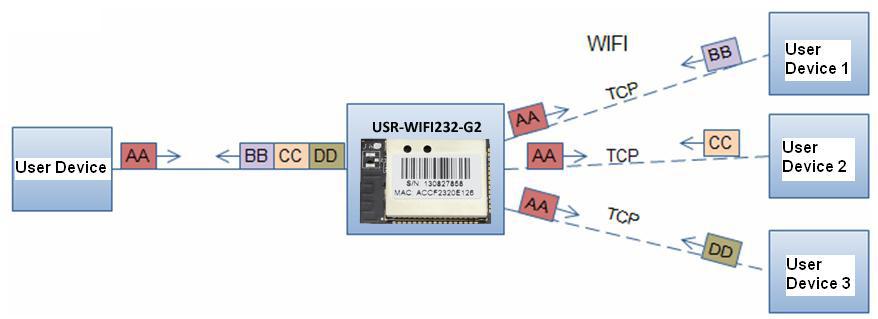

Multi-TCP Link Data Transmission:
