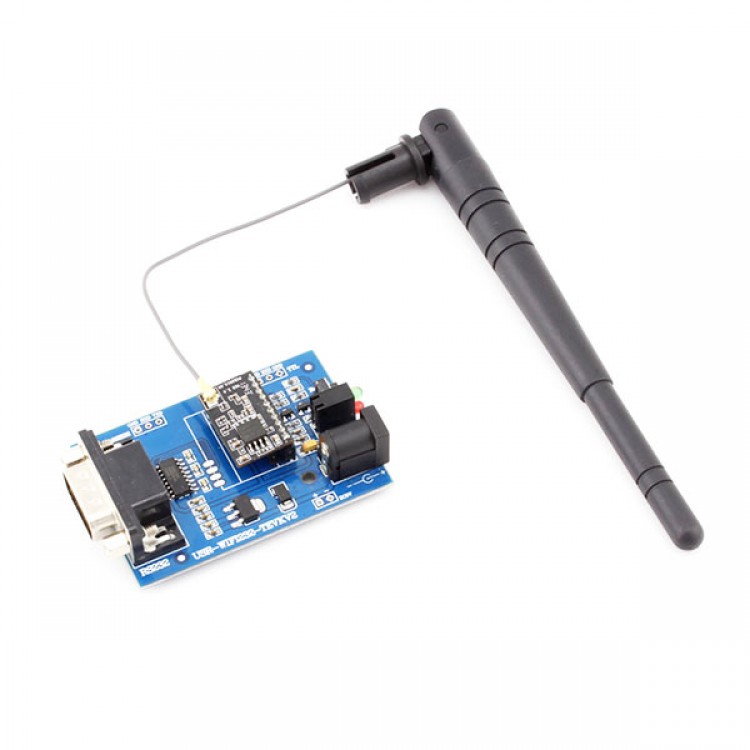

USR-WIFI232-TEVKV2 Tiny Size Low Power RS232 Turn Wifi Module Evaluation Kit

USR-WIFI232-TEVKV2 Tiny Size Low Power RS232 Turn Wifi Module Evaluation Kit

Specification:
1.Backplane Model : USR-WIFI232-TEVK Core Module Model : USR-WIFI232-T
2.Ultra-low power embedded Wi-Fi module provides a solution to connect the user interface to transfer a physical device to a Wi-Fi wireless networks and provide UART serial port data. The module integrates hardware MAC, baseband chip , RF transceiver unit, and a power amplifier ; embedded firmware supports Wi-Fi protocol and configuration, as well as networking, TCP / IP protocol stack. USR-WIFI232-T is an integrated 802.11 b / g / n Wi-Fi , low -power solutions , through USR-WIFI232-T module , the traditional low-end MCU controlled serial device or equipment can be very convenient access to Wi-Fi wireless networks , enabling objects linked network control and management.
3.Using the industry's lowest -power embedded structure , and for the application of smart furniture , smart grid, handheld devices, personal medical , industrial control , etc. These low-flow low -frequency field of data transmission and do a professional optimization.
4.USR-WIFI232-T is an integrated feature of all Wi-Fi compact module measures only 22mm x 13.5mm x 6mm. For applications such as lighting and sockets , using a 1x10 -pin 2mm pin connector for easy welding products in the customer's circuit board hardware . Module is equipped with a special pad or external antenna connector , the application applies to a variety of external antenna.

Application areas:

1.Serial ports RS232 turn WiFi;
2.WiFi remote control / monitoring, TCP / IP and Wi-Fi coprocessor;
3.WiFi remote control aircraft, cars and other toys in the field;
4.WiFi Internet radio, camera, digital photo frame;
5.Medical instrumentation, data acquisition, handheld devices;
6.WiFi fat, said smart card terminals; domestic intelligence;
7.Instrumentation, equipment parameter monitoring, wireless POS machines;
8.Secondary development of other wireless-related application of modern agriculture, military and other fields.

Feature:
1.Single-stream WIFI 2.4GHz, supports WEP, WPA/WPA2 security mode;
2.MCU platform independent development, high cost;
3.Fully integrated serial to Wi-Fi wireless capabilities;
4.Support in a variety of power-saving mode with very low power operation;
5.Support for multiple network protocols and Wi-Fi connection configuration functions;
6.Support STA / AP / STA + AP coexistence mode;
7.Smart Link supports intelligent networking capabilities (provided APP);
8.Support for wireless and remote firmware upgrade;
9.Optional pad outlet or external antenna connector;
10.Supports up to 3 channels PWM signal output channels;
11.Support DIP switch control module power supply;
12.AT + instruction set provides a rich configuration;
13.Ultra-small size: 22mm x 13.5mm x 6mm, 1x10-pin 2mm pin connector;
14.3.3V single power supply;
15.Support for low-power real-time operating systems and drivers;
16.CE / FCC certification;
17.RoHS compliant;
18.Small size, low power, low cost, support WPS, support Smart-LINK

Package:
1.RS232 turn wifi module test board one (including WIFI module)
2.female-female cross line
3.Quality 5V1A power adapter
