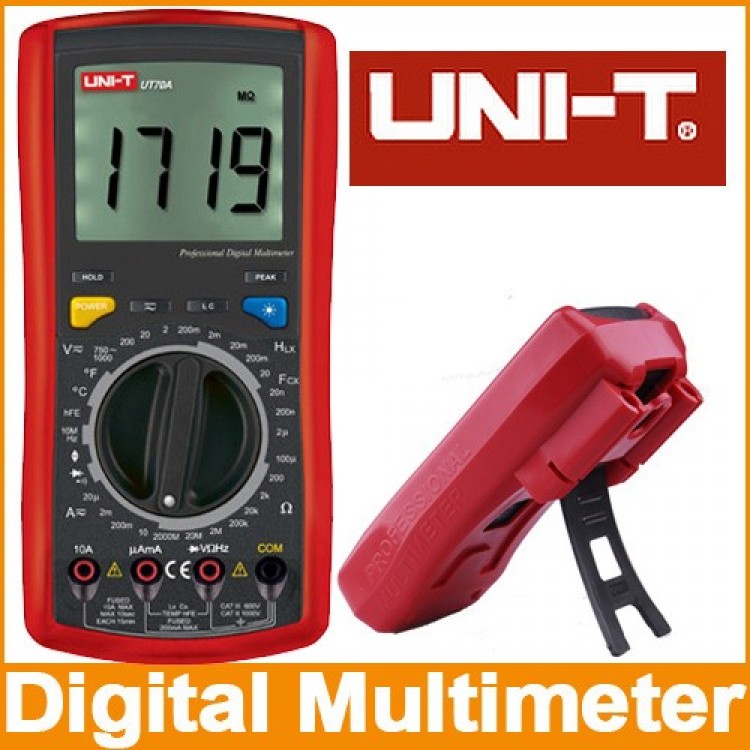

UT70A Modern Digital Multimetersauto Range DCVACV ACC

This digital multimeter is fully capable to measure voltage and current both AC and DC, resistance, capacitance, inductance, temperature, frequency, forward voltage drop of diode, transistor hFE and continuity test, TTL LOGIC level measurement. It has some extraordinary functions such as holding the measured data and maximum value, providing backlight display in a dim condition, displaying polarity, over-range, low battery, and units icons, and full overloading protection and automatic power off.

Main Features:
- Power: 9V Battery (6F22)
- LCD Size: 62 x 53mm
- Product Colour: UT70A - Grey, Holster - Red
- Product Net Weight:      620g
- Product Size: 195 x 90 x 40mm
- Standard Packing: Gift Box
- Standard Quantity Per Carton: 20 pcs
- Standard Carton Measurement: 535 x 365 x 380mm
- Standard Carton Gross Weight: 22.7kg

Specifications:

Basic Functions

Range

Best Accuracy

DC Voltage

200mV/2V/20V/200V/1000V

(0.5%+1)

AC Voltage

200mV/2V/20V/200V/750V

(0.8%+3)

DC Current

20mA/2mA/200mA/10A

(0.8%+1)

AC Current

20mA/2mA/200mA/10A

(1%+3)

Resistance

200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/2000MΩ

(0.8%+1)

Capacitance

20nF/200nF/ 2μF/100μF

(2.5%+5)

Temperture(°C)

-40°C~1000°C

(1%+3)

Temperture(°F)

-40°F~1832°F

(1%+4)

Frequency

2kHz -10MHz(Auto Ranging)

(0.1%+3)

Inductance

2mH/20mH/200mH/20H

(2%+10)

Logic

TTL (High > 2.0V, Low < 0.8)

Special Functions





Fused 10A Range



Diode



Continuity Buzzer



Transistor



Peak Hold



Data Hold



Display Backlight



Full Icon Display



Sleep Mode



Low Battery Display



Max. Display

1999


Package Including:
- 1 x Digital Multimeter
- 2 x Test Leads
- 1 x Temperature Probe
- 2 x Probes
- 1 x Multi-Purpose Socket
