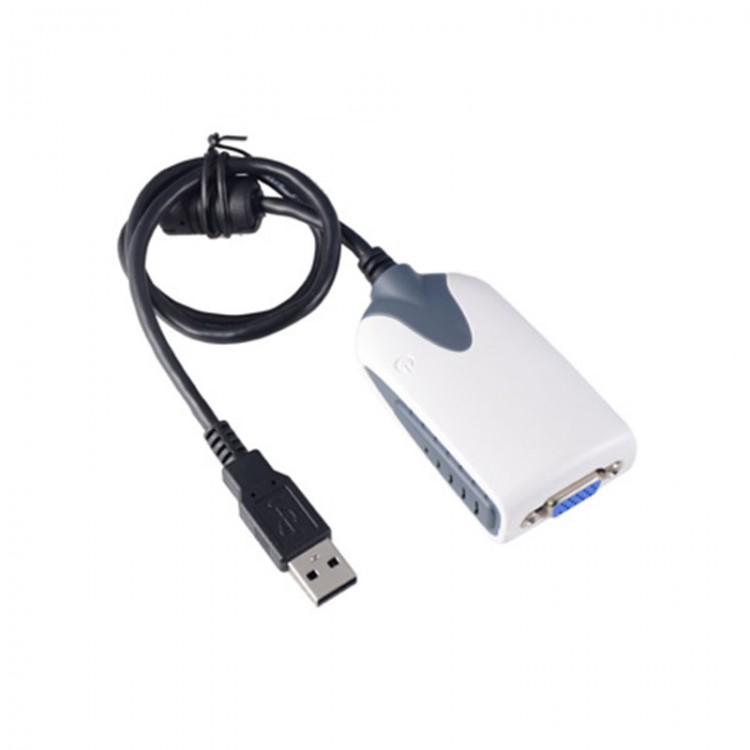

UV170 USB 2.0 Graphic Adapter for Additional Display Devices CRT LCD Monitor Projector

UV170 USB 2.0 Graphic Adapter for Additional Display Devices CRT LCD Monitor Projector

Description:
The USB 2.0 Graphic Adapter UV170 allows you to connect an extra monitor to your desktop PC or laptop's USB port.  The connected monitor can be configured to either clone your primary screen, or extend the Windows desktop allowing visibility of more applications at the same time.
The USB 2.0 Graphic Adapter driver used to control the extra screen uses very little computer resource and offers a vast array of screen resolutions and color depths. This ensures that there is little difference in performance between a directly connected screen and a screen connected through the USB 2.0 Graphic Adapter

The USB 2.0 Graphic Adapter supports up to six simultaneous displays, including widescreen displays, extending your desktop and your horizons. It operates at a high resolution of 1920x1080, 1920x1200,

Feature
- Add-on monitor, LCD or projector through USB3.0 or USB2.0 connectivity.
- Supports widescreen aspect ratio of 16:9 Full HD 1080P video streaming.
- High performance USB Graphics Engine supports resolutions up to1920x1080@ 32bit.
- Low power consumption via USB Bus power supply (without Heat Sink).
- Supports desktop display mirror, extend, multi screen, and screen rotation modes.
- Up to six USB graphic adapters working simultaneously.
- Movement of windows on the desktop is smooth, with no trail or shuddering.
- Compatible with Windows power management hibernate and suspend modes.

Specifications
- Interface: USB Super Speed, and backward compatible with USB2.0 High Speed
- Connectivity: VGA (640x480) or higher- resolution video adapter and monitor
- Resolution: 640x480, 800x600, 1024x768, 1152x864, 1280x720, 1280x768, 1280x800,1280x960, 1280x1024, 1360x768, 1400x1050, 1440x900, 1600x1200,  1680x1050, 1920x1080, 1920x1200
- Color Depth: 32-but True Color
- Power Supply: USB Bus Power
- OS Support: Windows XP, Vista, and 7/8, MAC
- Environment: Operation temp. 10°~40° (50-104F)
- Relative humidity: < 85% non-condensing
- Storage temp.-10°~85°(14~176°F).
- Regulatory Approvals: FCC, CE.ROHS

Application:
- Office Use:
  View large spreadsheets across two screens with display continuity
  Multitask more effectively without overlapping windows
  Open attachments on one screen while reading the e-mail on the other
- Mobile Use: Do multiple screen displays and presentations without bringing another computer
- Graphic Use: Use second display for pallets/tools
- Data Entry Use: Type documents on one screen while viewing reference material on the other
- Wall Street:
  Use a notebook for viewing multiple screens
  View charts and live data at the same time

Entertainment:
- View videos/TV on one screen and your desktop on the other screen
- Easily connect additional monitors using a USB 2.0 Cable
- Enjoy resolutions of up to 1280x1024/1400x1050 at 32 bit color
- Allows for effortless multitasking
- Bus Powered - No external power supply needed
- Supports usage through powered KVM's or USB hubs

Package list  :
- USB Graphics Adapter
- Driver CD ROM
- Quick Installation Guide
