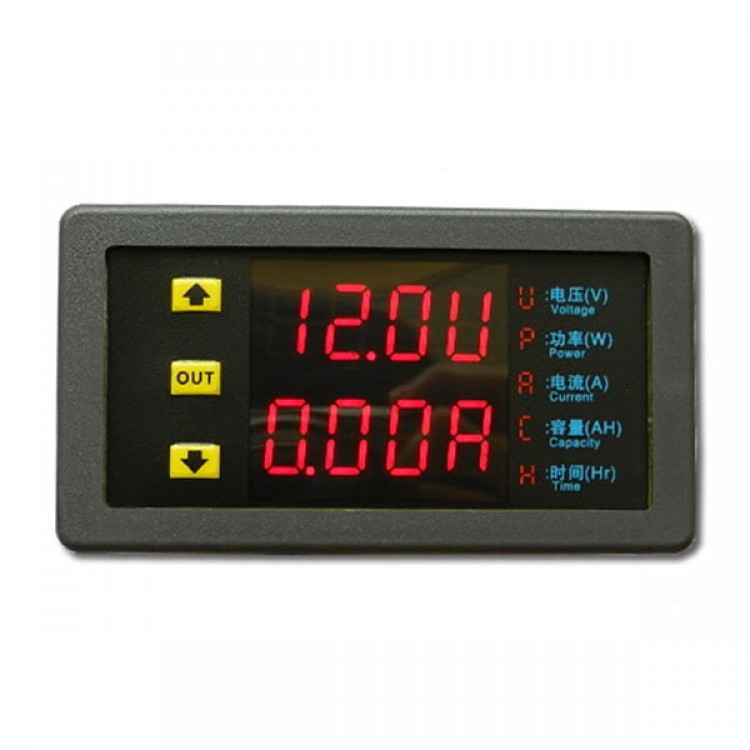

VAM9020 Dual-Digital LED Display VU Meter Voltage Current 20A 90V Voltmeter

VAM9020 Dual-Digital LED Display VU Meter Voltage Current 20A 90V Voltmeter

Introduction:
- VAM 9020  ammeter is a can in voltage,current,power,charging capacity,time and so on many kinds of physical measurement at the same time,  The instrument used fluctuation two group LED digital display tube and the test data, and can be used in flexible switch show different physical quantities. So the meter is very suitable for need to output voltage current monitor, as well as the battery and discharge applications.

Features:
- According to the measuring current size can choose different model
- Voltage current double shows, at the same time also can switch display power, charging capacity and time
- Voltage current double shows, at the same time also can switch display power, charging capacity and time
- With P series end with output shut off function keys, flexible open or shut off output
- Very flexible online calibration function, the user may itself calibration voltage current value
- Four LED digital tube, three measured values a unit instructions

Specification:
1. 2-wire input voltage range: 10V~90V
    3-wire input voltage range(Ext Power 12V or 24V): 0~90V
2. Output current range: 0- 20A
3. Voltage current show: 4 LEDs,3 Measured value + 1 display unit
4. Display resolution: 0.01V, 0.01A.01W ,0.01AH,0.01H
5. Voltage accuracy: ±1%+2 bytes
6. Current accuracy: ±2%…+5 bytes
7. Measuring rate: 5 times/s
8. Shape dimension(mm):79*43*25
9. Installing hole (mm): 76.5*39.2

Package contents:
-  1 x VAM9020 Dual-Digital LED Display VU Meter Voltage Current 20A 90V Voltmeter
