VAS 5054A ODIS V2.0 Bluetooth UDS Protocol with OKI Auto Car Diagnostic Tool

VAS 5054A ODIS V2.0 Bluetooth UDS Protocol with OKI Auto Car Diagnostic Tool

Description:
VAS 5054A best quality version, with OKI chip, support UDS protocols. This version vas 5054a support VW A-U-D-I Bentley and Lamborghini, support multi-language. Newest software version is VAG ODIS V2.0, with bluetooth. If you want high quality VAS 5054A, please choose this one.

VAS 5054A hardware support online coding, but our software not support. Need get software from VW dealer for online coding function.

VAS5054A ODIS V2.0 New Highlights:
- With OKI Chip
- Support UDS Protocol
- Multi-language:English/Germany/Russia/Spanish/Czech/France/Dutch/Portuguese
- Supported Car models: VW A-U-D-I SKODA SEAT

VAS 5054A ODIS V2.0 Computer Windows System Requirements:
- Windows System Language: American English
- Windows XP(xp2/xp3)
- System C:// have to be NTFS format
- C:// need to have at least 40 GB space for installing VAS5054A

Bluetooth version
- The VAS 5054A is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers.
- The integrated Bluetooth interface connects the vehicle with a notebook, desktop PC or test system.
- No cables are needed for vehicle diagnostics using the VAS 5054A.
- The range of the wireless Bluetooth connection is 5 to 10 meters,depending on the environment and the type of Bluetooth adapter used on the PC side.
- The Serial Port Profile (SPP) is used for data transfer via Bluetooth. Different Bluetooth security levels are supported.

Specification:
- The vehicle protocols are handled directly in the VAS 5054A.
- This ensures fast response times and a reliable real-time behavior independently of the PC operating system. Every time a connection is established, the VAS 5054A software is identified with the version installed on the application PC. The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC.
- The diagnostic application and the associated Diagnostic Base System are installed on the application PC.
- The diagnostic base system can access the VAS 5054A via Bluetooth or USB.
- Access via Bluetooth: After a connection to the VAS 5054A has been set up, the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile). The Diagnostic Base System uses this COM port to communicate with the VAS 5054A.You need to specify this port when you install the diagnostic application.
- Access via USB: You can also connect the VAS 5054A to the application PC by using the supplied USB cable. Windows detects the VAS 5054A through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic application. Setup of the VAS 5054A is then complete and the device is ready for use by the diagnostic application.

The following vehicle bus systems are supported:
- K line (ISO9141-2)
- High-speed CAN (ISO 11898-2)
- Low-speed CAN (ISO 11898-3)
- J1850 (SAE J1850)

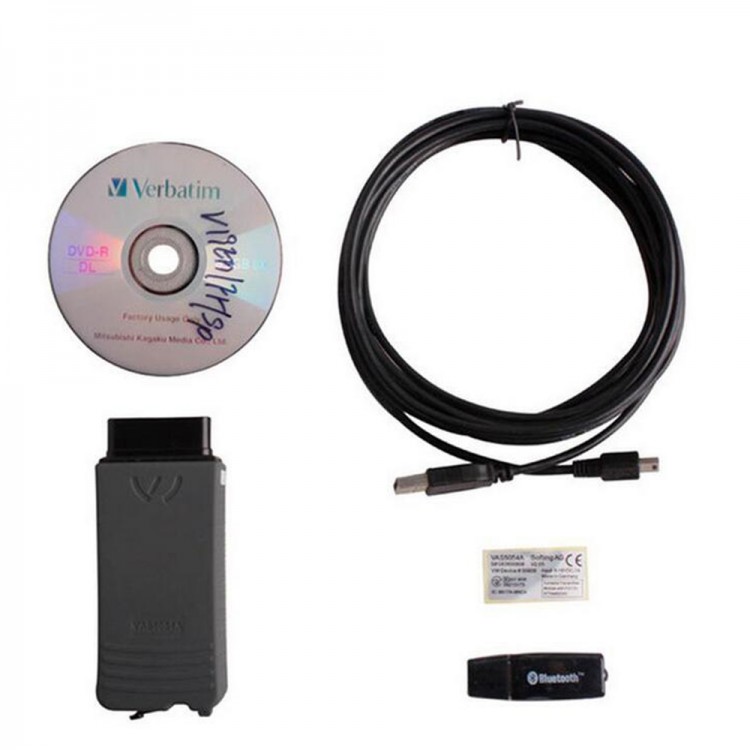

Package list:
- 1pc x VAS 5054A Main unit
- 1pc x USB Cable
- 1pc x USB Bluetooth Adapter
- 2pcs x CD Software
- 1pc x Carry Case
