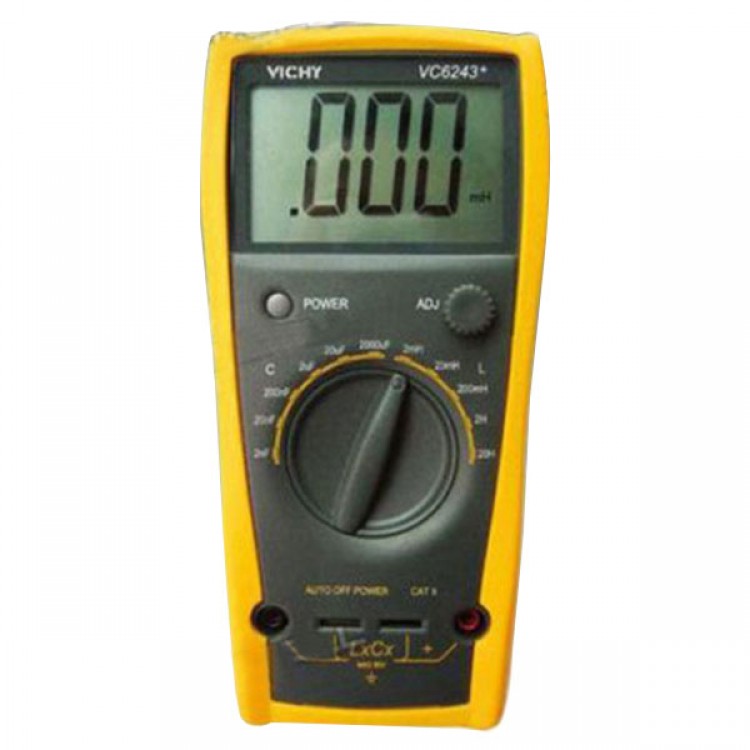

VC6243+ LC Meter Inductance Digital Capacitance 20H
Features:
1.New type holster, streamline design;
2.Large LCD makes the reading clearly;
3.Strong antimagnetic and anti-jamming performance;
4.full protect function, capacitor with the function of self discharge;
5.Unit symbol display, easy to operate.
Technical data:
Basic function |
Range |
Basic accuracy |
Capacitance |
2nF/20nF/200nF/2uF/20uF/2000uF |
±(2.5%+10) |
Inductance |
2mH/20mH/200mH/2H/20H |
Special function |
VC6243+ |
Low battery indication |
Approx. less than 7.5V |
capacitor discharge protect |
√ |
Auto power off |
It will power down about 30 minutes if no any measure. |
Function protect |
√ |
Anti-shock protect |
√ |
Sampling rate |
3times/s |
Operation way |
Manual range |
Max. display |
1999 |
LCD size |
65×41mm |
Battery |
9V (6F22) |
Power dissipation |
Quiescent current approx. 4mA |
General characteristic:
Color |
Body: dark grey, holster: orange (pantone No.:1495V) |
Weight |
290g(including battery) |
Meter size |
185×93×35mm |
Standard accessory |
Test leads, battery, manual |
