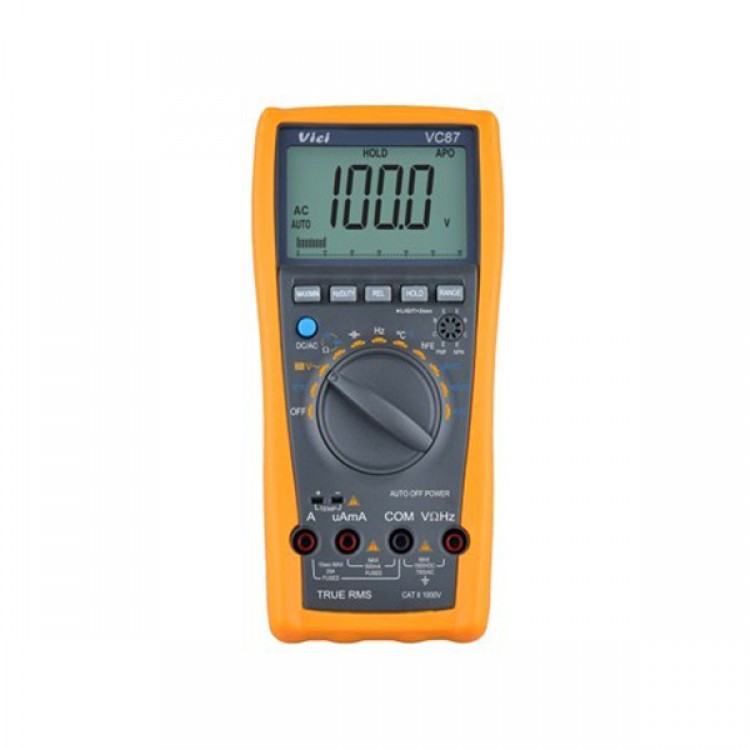

VC87 True RMS Multimeter for Motor Drives
  • VC87 True RMS Multimeter for Motor Drives

  • SKU:23760
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 8
  • Price:$77.09
  • Price in reward points: 771
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $75.55 $74.01 $71.69 $68.61 Contact US

VC87 True RMS Multimeter for Motor Drives


Features:
- True RMS ACV and ACA for accurate measurements on nonlinear signals;
- Accurate measurement of voltage and frequency on motor drive;
- 12 kinds of measuring function, with VSD, diode, hFE, duty cycle, resistance, continuity, etc.
- Analog display, manual or auto range;
- Strong antimagnetic and anti-jamming performance. Full function protection, with anti high voltage circuit design;
- Large LCD display, white backlight, unit symbol display, very easy to read;
- Relative value, Max/Min value measuring, data hold.


Technical data:

Basic function

Range

Accuracy

DCV

600mV/6V/60V/600V/1000V

±(0.5%+4)

ACV

6V/60/600/1000V

±(0.8%+10)

DCA

600uA/6000uA/60mA/600mA/6A/20A

±(0.8%+3)

ACA

600uA/6000uA/60mA/600mA/6A/20A

±(1.0%+20)

Resistance

600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

±(0.8%+5)

Capacitance

40nF/ 400nF/4uF/40uF/400uF/2000uF

±(3.5%+8)

Frequency

100Hz/1kHz/10kHz/100kHz/1MHz/60MHz

±(0.5%+4)

Centigrade temperature

-40℃~1000℃

±(0.75%+3)

0℉~1832℉

±(1.2%+3)

Special function

VC87

VSD

True RMS

Diode test

hFE test

Continuity test

Approx. less than 30Ω±10Ω

Low battery indication

Approx less than 5V

Duty cycle measuring

Data hold

Auto power off

Approx.15minutes

Analog bar

Backlight display

Function protection

Input impendence

10MΩ

Sampling rate

3times/s

AC frequency response

40-10KHz

Operation method

Manual or auto range

Max. display

6000

LCD size

65x41mm

Battery

9V(6F22)

Power dissipation

Quiescent current approx. 3mA

General characteristic


Color

Body: dark grey, holster: yellow or orange

Weight

290g(including battery)

Meter size

185×93×35mm

Standard accessory

Test leads, battery, manual, TP01 temperature probe,Crocodile clip

Packing

Gift box

Standard packing per carton

30pcs

Carton size

43.5×29.5×40.5cm

Standard G.W per carton

16.5kg
