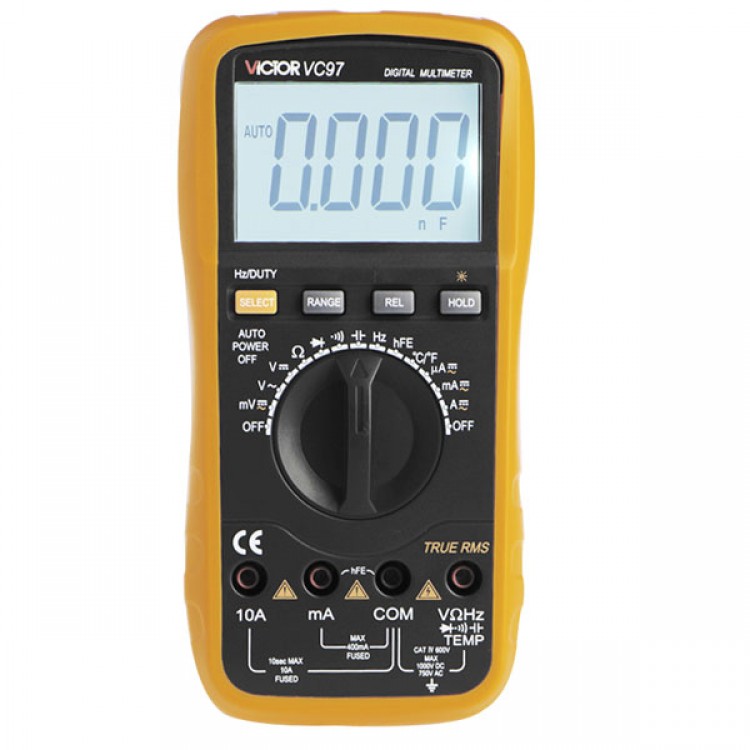

VC97 3 3/4 Auto Range Digital Multimeter All Function w/ Backlight Display

Availability: In stock, usually dispatched in 1 business day

  • Price:$33.34
  • Price in reward points: 333 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $32.67 $32.01 $31.01 $29.67 Contact US
Quantity:

VC97 3 3/4 Auto Range Digital Multimeter All Function w/ Backlight Display

Features:

- New type holster, streamline design;
- Large LCD makes the reading clearly;
- Strong antimagnetic and anti-jamming performance;
- Full function protection,;
- Unit symbol display, very easy to reading;
- Relative value, frequency/duty cycle measuring, data hold.

Technical data:
- Basic function     Range        Basic accuracy
- DCV     400mV/4V/40V/400V/1000V     ±(0.5%+4)
- ACV     4V/40V/400V/1000V     ±(0.8%+6)
- DCA     400uA/4000uA/40mA/400mA/20A     ±(1.0%+5)
- ACA     400uA/4000uA/40mA/400mA/20A     ±(1.5%+5)
- Resistance 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ     ±(0.8%+1)
- Capacitance     4nF/40nF/ 400nF/4uF/40uF/200uF     ±(3.5%+8)
- Frequency     100Hz/1kHz/10kHz/100kHz/1MHz/30MHz     ±(0.5%+4)
- Centigrade temperature     -40℃~1000℃     ±(0.8%+4)


Special function       VC97
- Diode test     √
- hFE test     √
- Continuity test     Approx. less than 30Ω±10Ω
- Low battery indication     Approx less than 2.4V
- Duty cycle measuring     √
- Data hold     √
- Auto power off     Approx.15minutes
- Function protect     √
- Input impendence     10MΩ
- Sampling rate     3times/s
- AC frequency response     40-400Hz
- Operation way     Manual or auto range
- Max. display     4000
- LCD size     65x41mm
- Battery     3V  AAA×2
- Power dissipation     Quiescent current approx. 2mA

General characteristic
- Color     Body: dark grey, holster: orange (pantone No.:1495V)
- Weight    290g(including battery)
- Meter size    185×93×35mm
- Standard accessory    Test leads, battery, manual, TP01 temperature probe
- Packing    Gift box
- Standard packing per carton    30pcs
- Carton size   45.5×32.5×43.5cm
- Standard G.W per carton17kg
