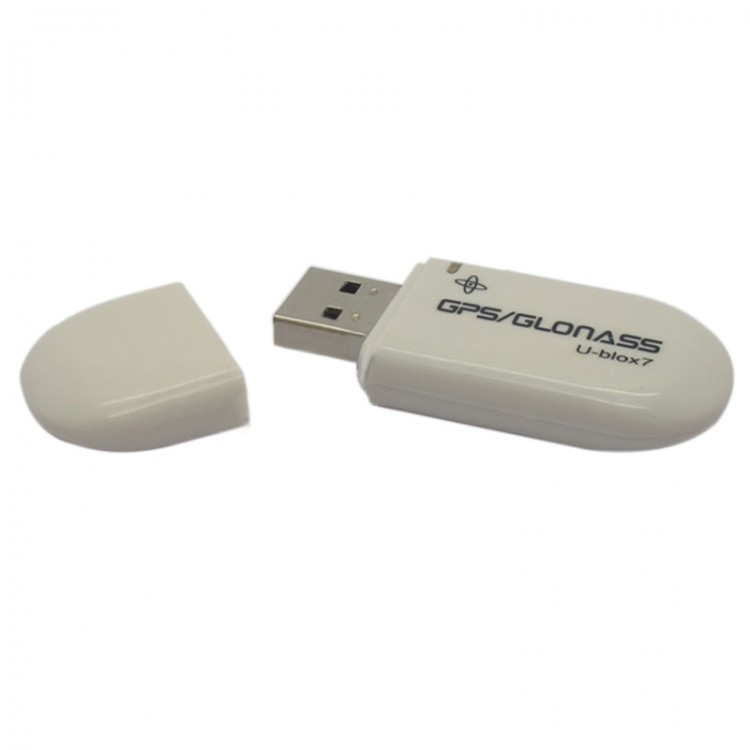

VK-172 GMOUSE USB GPS Module GLONASS USB Antenna Receiver Navigation Module
Decription:
- Supported operating systems: Windows 8/7/Vista/XP/CE
- VK-172 automatically adapt the baud rate, the baud rate has any data output
- Support Google Earth
- C / A code, 1.023MHz stream
- Receive Band: L1 [1575.42MHz]
- Tracking Channels: 56
- Support DGPS [WAAS, EGNOS and MSAS]
- Positioning performance :
- 2D plane: 5m [average]
- 2D plane: 3.5m [average], has DGPS auxiliary.
- Drift: <0.02m / s
- Timing Accuracy: 1us
- Reference coordinate system: WGS-84
- Maximum altitude: 18,000 m
- Maximum speed: 500m / s
- Acceleration: <4g
- Electrical properties:
- Tracking sensitivity:-162dBm
- Acquisition sensitivity:-160dBm
Russia driver: http://www.drive2.ru/l/5033334/
Driver Link: https://www.adrive.com/public/gsWtV9/FZ1007-VK-172.zip
http://pan.baidu.com/s/1o6FTWaY
- Cold Start Time: 29s [average]
- Warm start time: 28s [average]
- Hot start time: 1s [average]
- Recollection Time: 0.1s [average]
- Operating temperature:
- -30 ℃ to +80 ℃
Package included
- 1X VK-172 GMOUSE USB GPS/GLONASS USB
