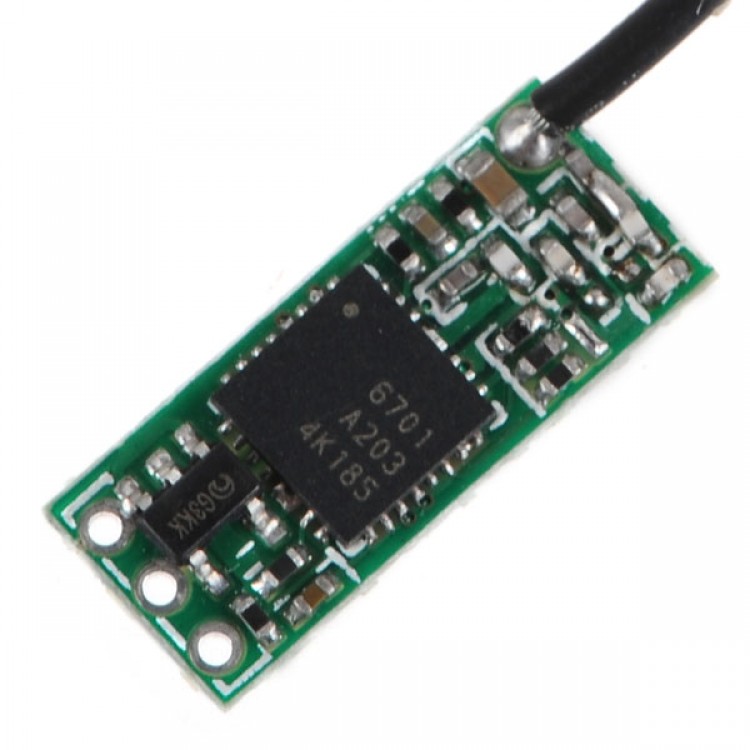

VM100T Micro Transmitter Module 50mw Micro-miniature TX Module

Availability: Out Of Stock

  • Price:$5.74
  • Price in reward points: 57 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $5.63 $5.51 $5.34 $5.11 Contact US
Quantity:

VM100T Micro Transmitter Module 50mw Micro-miniature TX Module

Features:
- Micro-miniature size and low profile
- 4 selectable 2.4GHz band channel
- Frequency control with PLL design
- Audio sub-carrier with PLL design
- Frequency
  CH1:2414MHz
  CH2:2432MHz
  CH3:2450MHz
  CH4:2468MHz

Specfication:
- Frequency band:2400~2483MHz
- Channel customer:4
- Channel Frequency:2414MHz/2432MHz/2450MHz/2468MHz
- Audio Sub-carrier:6.5MHz
- Modulation type:FM
- Transmit power:17dBm
- Frequency control:PLL
- Audio sub-carrier control:PLL
- All harmonic:Max-20dBm
- Frequency Stability:±100kHz(Typ.)
- Frequency precision:±200kHz(Typ.)
- A/V  (Ratio):-26±2dB
- S/N(Fo±3MHz)>70dBc
- Channel Carrier error:1dB
- Antenna Port:50 Ohms
- Input format:NTSC or PAL
- Video input level:1Vp-p type
- Audio input level:1Vp-p type
- Base-band interface:4X2.0+4X2.0 Pad
- Power consumption:5V/Max 85mA
- Operating Temperature:-10℃~+60℃
- Profile dimension:18X10
