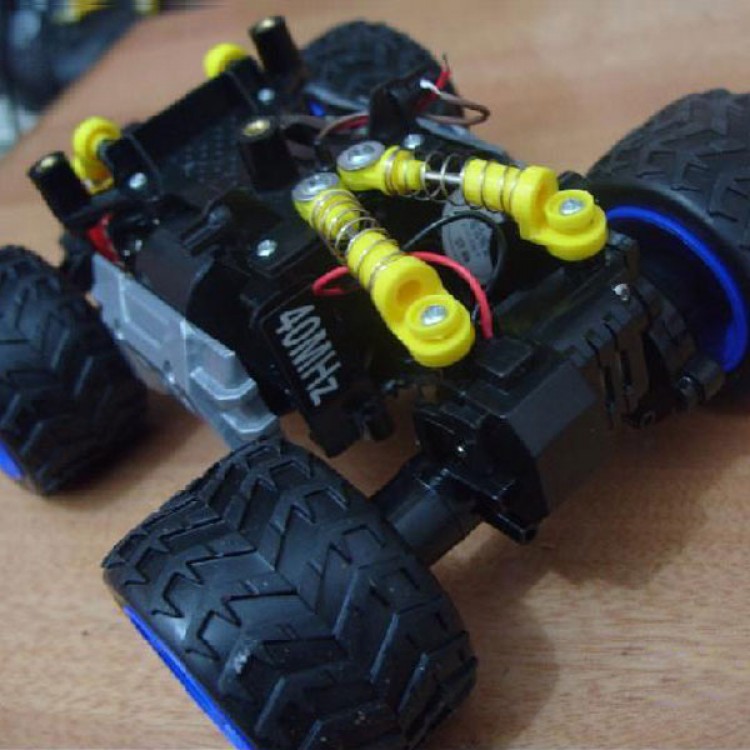

Voice Control Robot CarSmart Car with 61 Development Board Support USB Download

Voice Control Robot CarSmart Car with 61 Development Board Support USB Download
Features:
61 development board
- CPU:SPCE061A (SUNPLUS unSP),External  Clock is 32768Hz,interior frequency multiplication up to 49MHz
- Flash ROM:64Kbyte 16bit Flash
- RAM:4KByte 16bit SRAM
- I/O:32 digitas IO
- ADC：8 Channel 10 digital ADC. Max convert speed up to 96KHz,with external AD reference voltage interface
- DAC：2 Channel 10 digital DAC,Max convert speed up 100KHz
- Micro phone：1 Channel MIC voice frequency input
-with Loudspeaker interface on the development board
- Voice adjustment potentiometer: used to adjust the voice volume
- can choose the electric level:3V or 5V
- with two external clock input interface
- with SIO (Serial communication interface)
- Power supply and suspend indicator LED, when the system turns in to suspend state,the green suspend indicator LED will be on
- with 1*3 keyboard
- with battery case power supply interface, can be powered by 5V external power supply
- intergration EZ_Probe
- with download cable
- PROBE interface
Specfications:
- Speed:8km/h
- Anti-Vibration: front wire independent mechanical springAnti-Vibration structure, rear-wheel up snd down anti-vibration structure
- wires :adopts artificial rubber,high performance of downloding and surface friction
- differential mechanism:  rear-wheel with differential mechanism, avoiding slipping and over friction
- Size:18*15*12cm

Brief function:
- can be opreated I/O operation to control  Forward/draw back/turn left/turn right
- can use PWM resource to control the speed
- with SPCE061A voice feature,take advantage of Voice resource
- can be tracking,and obstacle-avoiding,measure distance via ultrasonic when added sensor to the car
