Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $8.39 | $8.22 | $7.96 | $7.62 | Contact US |

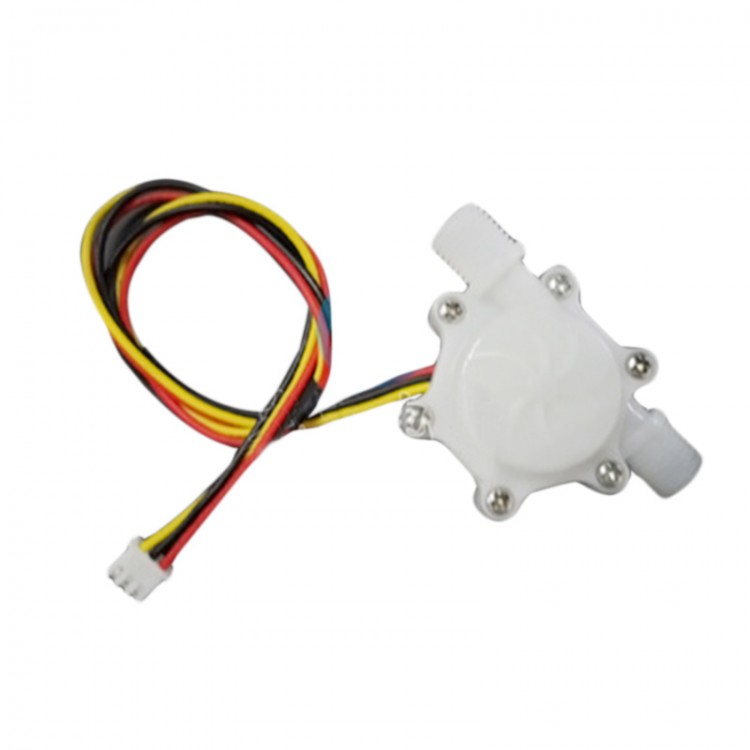

Water Flow Sensor Module Flowmeter Waterheater Accessories Dia 10.9mm
Parameters:
- Using the medium: water, less than or equal to ≤60℃
- Voltage range: DC4.5-18V (can be customized 24V)
- Rated voltage / current: DC5V, 10mA
- Output voltage (rated DC5V): above high level 4.5V, lower than low level 0.5V, pulse duty cycle: 50%
- Insulation resistance: > 100MΩ
- Electrical strength: AC500V, 50HZ
- Flow range: 0.15-1.5L/min
- Pressure resistance: ≤0.8MPa
