Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $9.52 | $9.32 | $9.03 | $8.64 | Contact US |

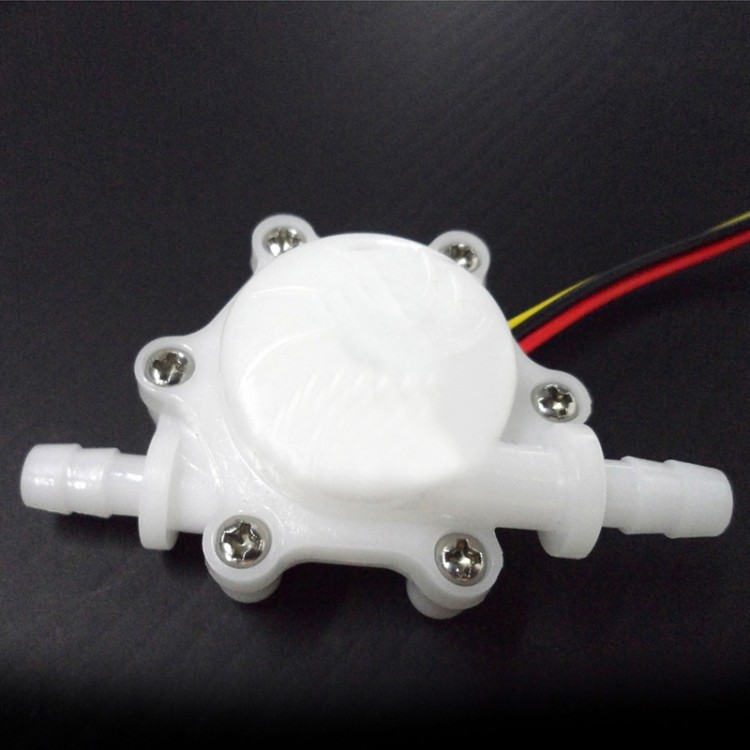

Waterflow Sensor Module Flowmeter Gas Hotwater Accessories Switch Dia 7mm
Parameters:
- Using medium: waterproof ≤60℃
- Voltage range: DC4.5-18V (can be customized 24V)
- Rated voltage/ current: DC5V, ≤10mA
- Output voltage (rated voltage DC5V): above 4.5V high level, bleow 0.5V low level, pulse rate factor 50%
- Isolation resistor >100MΩ
- Electrical strength: AC500V, 50HZ
- Flow range: 0.3-3.0L/min
- Withstand voltage performance: ≤0.8MPa
