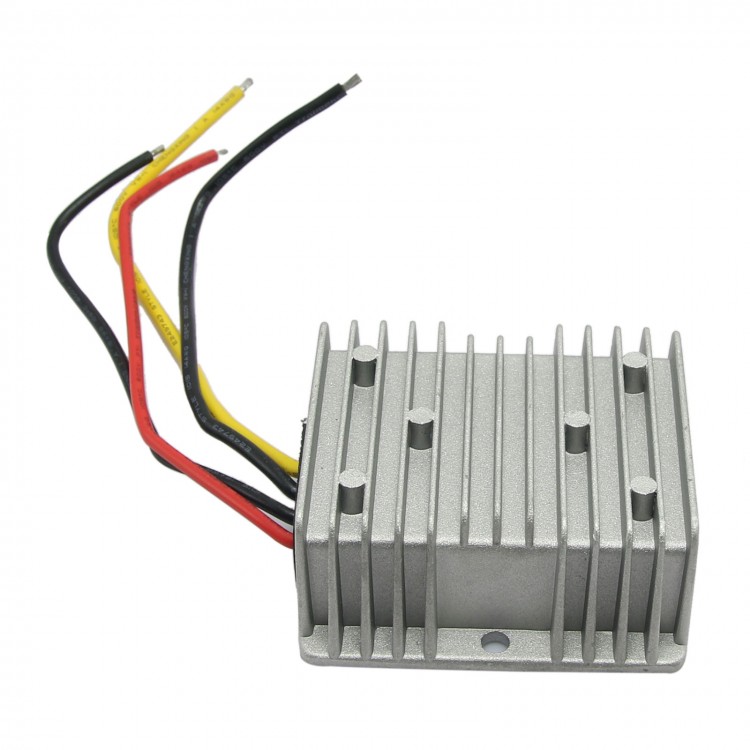

WaterProof 48V to 12V 20A 240W DC/DC Step-DOWN Power Converter Voltage Regulator

Availability: In stock, usually dispatched in 1 business day

  • Price:$19.33
  • Price in reward points: 193 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $18.94 $18.56 $17.98 $17.20 Contact US
Quantity:

WaterProof 48V to 12V 20A 240W DC/DC Step-DOWN Power Converter Voltage Regulator



Description:

DC/DC converter applies advanced technology and is configured specifically for electric vehicles,like golf cart,E-socket. It is very suitable to supply power to the lamp and audio system as it is very stable and clean. The advantages of high efficiency, stability and compact size, are achieved by adopting the advanced high frequency technology. Now it comes with Automatic CURRENT LIMIT CONTROLLER AND AUTO RESET, and Water Proof

Specifications

Input Voltage:                    48V nominal

Input range:                        40V to 56V

Input Current:                    10A (max)

No-load input current:       ≤10mA

Output Voltage:               DC 12V ±2%

Output Current:               20A

Ripple wave:                  50Mv

Starting delay time:         ≤ 2S

Maximum Efficiency:       ≥92%

Insulation resistance:      ≥20M Ω (between crust and earth, insulation resistance ≥20M Ω)







FEATURES:

  • All epoxy sealed containers with Waterproof Die-Cast Aluminum Housing;
  • Light compact, convenient to use and transport;
  • Non-isolated
  • High efficiency:> 92%;
  • Operating temperature at -10 ℃ to +60 ℃; (max.+80 ℃)
  • With overload / over-current / over / low voltage protection, stable performance.
  • Auto recovery
  • Dimension:74x74x31mm
  • Weight:280g
