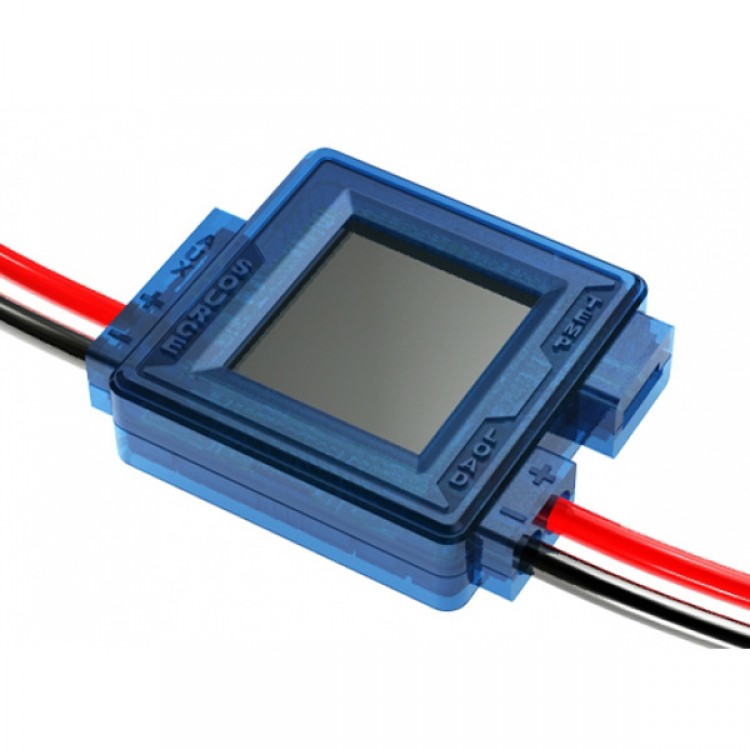

Watt Meter Measures Energy (Wh) Charge (Ah) Power (W) Current (A) Voltage (V)
Features:
- Measures energy (Wh), charge (Ah), power (W), current (A) and voltage (V)
- Measures peak Amps, peak Watts ,voltage minimum (sag), peak temperature.
- Measures temperature in both Celsius & Fahrenheit (optional temperature probe is necessary)
- Auxiliary battery to power watt meter for measurement down to 0V
- Accurate & precise – 0.01 A current and 0.01V voltage resolutions
- Rugged – handles 50 A continuous and 100 A peak at 60V
- Small & light with a tough plastic case
- Precision Alu-Chrom current sensing resistor, with only 0.001 Ohms resistance
- Factory calibration stores constants in EEPROM to compensate for component tolerances
Specifications:
Parameter | Range or Value | Resolution |
Voltage | 0-60V (*1) | 0.01V |
Current | 0-100A peak (*2) | 0.01A |
Power | 0-6000W | 0.1W |
Charge | 0-65Ah | 0.1mAh |
Energy | 0-6554Wh | 0.1KWh |
Temperature | 0-150℃/32℉-302℉ | 1℃/1℉ |
Auxiliary Power | 4.0V-60V |
|
Dimensions | 51.3*42.9*13.7mm |
|
Net Weight | 42g/1.48oz |
|
Display | 26.5*28.5mm LCD |
|
(1).0V minimum with auxiliary power.
(2)50A continuous, 100A peak, assumes device’s wires are in free air and attached to connections at or below temperature of 35 flow.
