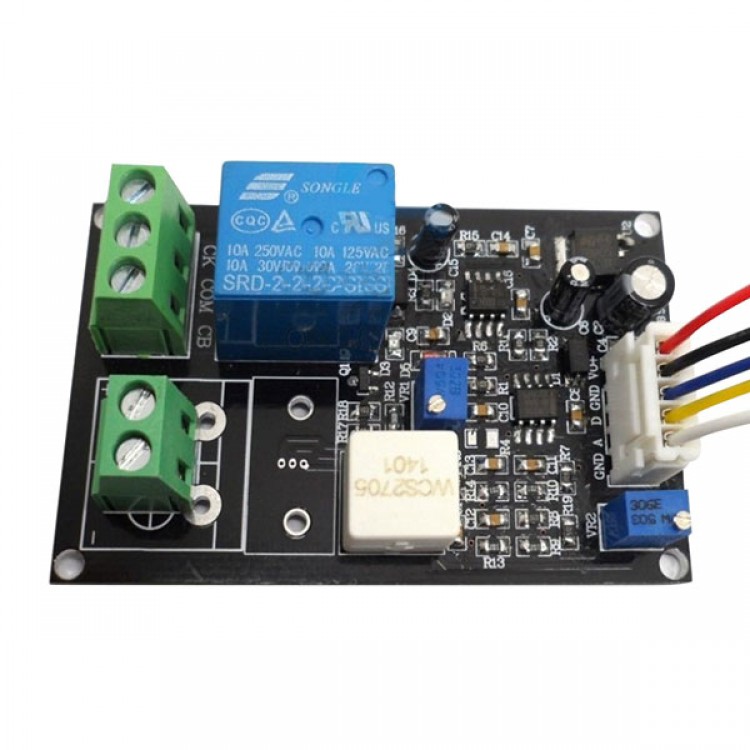

WCS2750 Delay Output DC Current Detection Module Holzer Overcurrent Protection

Availability: In stock, usually dispatched in 1 business day

  • Price:$17.95
  • Price in reward points: 180 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $17.59 $17.23 $16.69 $15.98 Contact US
Quantity:

WCS2750 Delay Output DC Current Detection Module Holzer Overcurrent Protection

Description:

- Size: 70*45mm
- Major chip: operational amplifier, mutual inductor
- Working voltage: DC24V
- Output mode: Switch (delay 3S output) the delay time can be customized, analog output (if using level signal, two resistors has to be cut off on the circuit board)
- Output overcurrent relay normally open normally close output
- With fixing install holes

WCS2720
- Current detection range width DC: 2A  AC: 1.4A
- Current detection definition rate: 1V/A
- Overcurrent signal setting points are adjustable, setting definition rate is 0.1A

Package includes:
- DC current detection sensor module x 1
- 5Pin connnecting cable x 1
