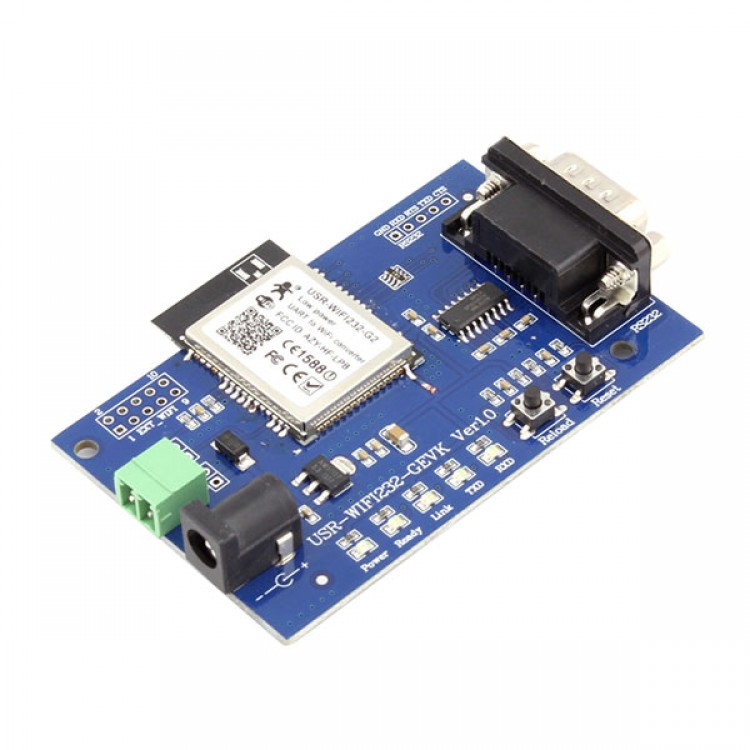

WIFI232-G2 Evaluation Board RS232 to WIFI Low Consumption Industrial Level WIFI Serial Port Wireless Module

Availability: In stock, usually dispatched in 1 business day

  • Price:$36.78
  • Price in reward points: 368 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $36.04 $35.31 $34.21 $32.73 Contact US
Quantity:

WIFI232-G2 Evaluation Board RS232 to WIFI Low Consumption Industrial Level WIFI Serial Port Wireless Module

Features:

- Size: 23mm*33mm*2.7mm
- Low consumption wifi module, wifi standy by current is only 10mA,
- Support 802.11 b/g/n agreement
- Support most Wifi encryption mode WEP/WPA-PSK/WPA2-PSK/TKIP/AES
- Integrated PA+RF + MAC+MCU+TCPIP Stack
- No need any user driver
- Support AP/ STA/ AP+STA working mode
- Support TCP Server/TCP Client/UDP working mode
- Support DHCP DNS HTTP advanced application agreement
- Can choose built in PCB antenna or external antenna
- Support instruction setting through web page, serial port or network
- Support searching agreement or domain mode in LAN, no need static IP
- Providing Socket programming examples, VB VC Delphi C++ IOS Android
- Providing virtual serial port software and Windows/IOS/Android testing software
- Support 2 channels of TCP connection, TCPB only support TCP client
- VIP specific firmware version support SPI/IO/PWM, hardware reserves USB and ADC port
- VIP support user self definition web page
- VIP support SmartLink smart connection function, using APP control mode to connect normal wireless router
- Passing CE/FCC authentication, satisfy ROHS standard
