Wind DAC Decoder Board Complete Amplifier Machine Support 384K 32BIT(SA9023 Plan Includnig Charger)

Availability: In stock, usually dispatched in 1 business day

  • Price:$92.39
  • Price in reward points: 924 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $90.54 $88.69 $85.92 $82.23 Contact US
Quantity:

Wind DAC Decoder Board Complete Amplifier Machine Support 384K 32BIT(SA9023 Plan Includnig Charger)

Design philosophy:

- Adopting battery to power the machine compard to some imported transformer, the sound is more smooth and pure.
- Small consumption, one time charging can gurantee 30 hours of continous amp working
- DAC adopting high end PCM5102, this DAC chip makes the tone more warm, better than CS4398 on human sound and dynamic
- SNR: 112db
- Sound distorion: -93db
- Work with XMOS, can directly play 384K 32BIT file

Technical paramters:
- Optical coaxial input support: 192K 24Bit
- USB input support: 384K 32BIT (xmos dauhter card)
- Input voltage: DC 5V-12V
- PCB size: 120mm x 105mm
- Complete amp machine size: 137mm x 115mm x 30mm

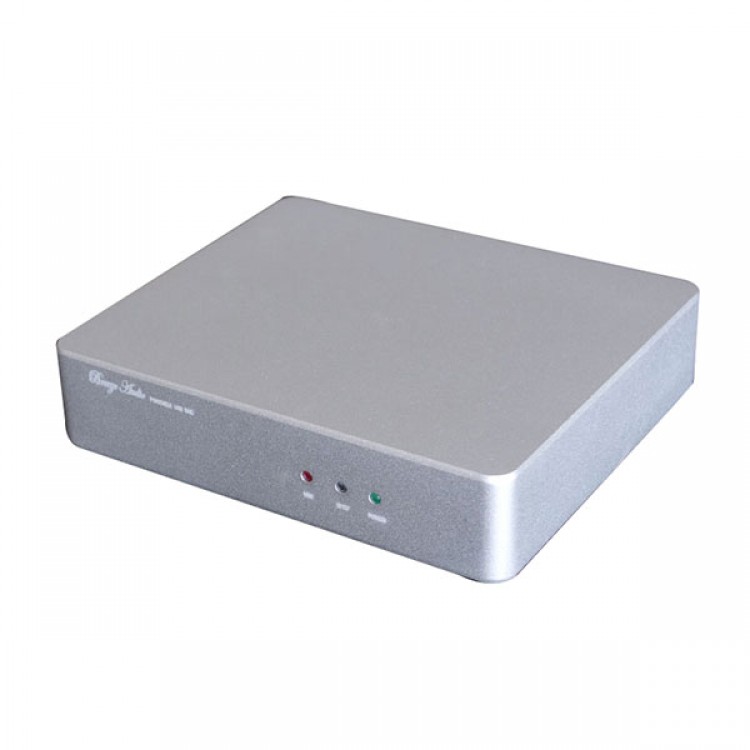

Complete amp machine:
- Two switch on the back, one is power switch, one is coaxial and optical switch
- USB choosing is priority level, connect with USB cable, USB channel is directly choosed
- Note: charger light is red when charging, after finish charging, the light becomes green

Package includes:
- SA9023 plan complete board x 1
- Charger x 1
