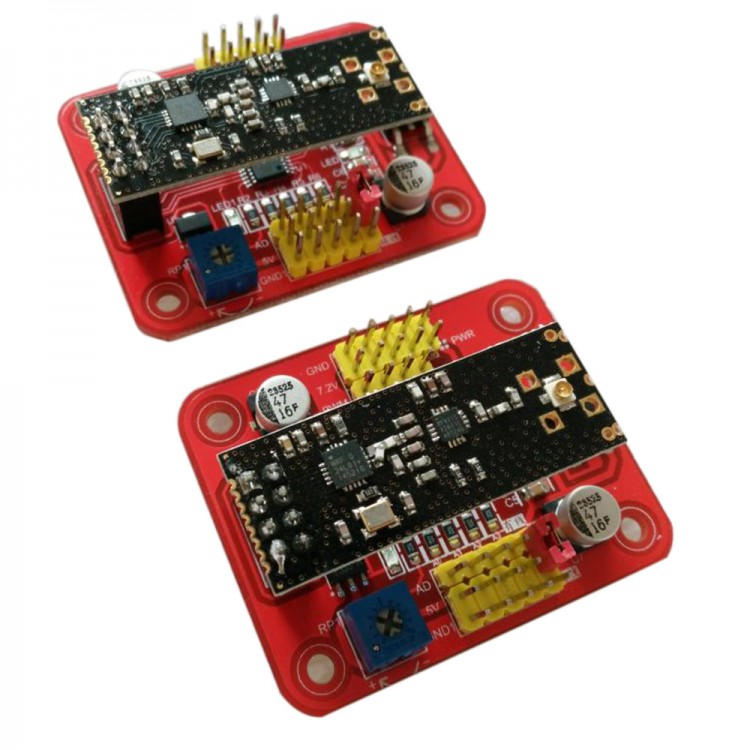

Wireless 4CH Adjustable PW Servo Controller Module Tester for RC Remote Controller
Specification:
- Power supply: 5-7.4V
- Current: 1A for one servo; the bigger current, the better
Output signal:
- Frequency: 50Hz
- Cycle: 20Ms
- PW: Adjustable, max.0.5-2.5MS; minimum1.5Ms; 0-180/270 degree
Performance:
- Power supply revising connection protection
- Adjustable PW
- For wire, and wireless (can be used ad wire board/transmitter board/receiver board)
- With out-of-control protection
- Accuracy: 10bit

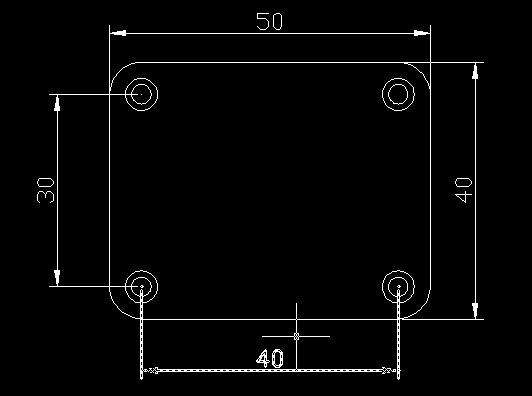

Mounting size:
- Can be used as transmitter board, level /joystick/servo can be installed
- Can be used as receiver, servo can be installed only
- Can be used as wireless control
- Do not connevt servo unless the level channel is available
Video: Click here
Package included:
- 2 x Controller board
- 2 x 1100m wireless modle
- 2 x Antenna
- 2 x Rubber antenna
