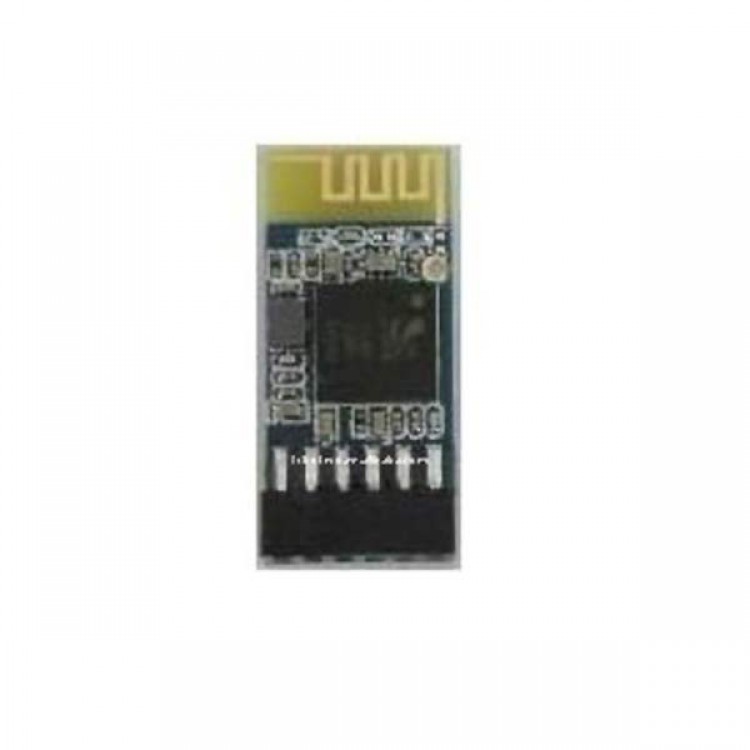

• Wireless Bluetooth Receive Module CSR BlueCore Chip BMX-03B

Wireless Bluetooth Receive Module CSR BlueCore Chip BMX-03B

Availability: In stock, usually dispatched in 1 business day

  • Price:$9.39
  • Price in reward points: 94 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $9.20 $9.01 $8.73 $8.36 Contact US
Quantity:

Wireless Bluetooth Receive Module CSR BlueCore Chip BMX-03B

Features:
- Master chip: CSR BlueCore
- Qutput power: Class II
- Transmission distance: sighting distance 10m
- Flash capacity: 6-8Mbit
- Bus interface: UART
- RoHS standard: conform

Overview:
BMX-02/03 series Bluetooth module use CSR BlueCore chip, configure 6 to 8Mbit storage space, support AT command, users can change SPP (Client-Server) and the parameter of serial baud rate, key pairequipment name and so on
BMX-02 series Bluetooth module adopts stamp hole mode. It is applicable to be SMT produced in batch, lead out IO, this is suit for the client who has no requirement
BMX-03 series Bluetooth module adopt socket mode, it only need to weld one 2 x 6PIN, pitch = 2.0mm pin on the board, let the module avoid welding again, this both suit for DIY client and batch size client

Serial NO.

 Model

Supply Voltage

Dimension

FLASH Capacity

Bluetooth  IC

Bluetooth

Version

1

BMX-02A

3.3V

26.9*13*2.2mm

External 8Mbit

BC417143B-IQN-E4

V2.0+EDR

2

BMX-02B

3.3V

26.9*13*2.2mm

External 8Mbit

BC417143B-IQN-E4

V2.0+EDR

3

BMX-02C

2.0-3.7V

26.9*13*2.2mm

Internal 6Mbit

BC31A223A-IVN-E4

V2.0

4

BMX-02D

2.0-3.7V

26.9*13*2.2mm

Internal 6Mbit

BC41C671A-IPK-E4

V2.0+EDR

5

BMX-03A

2.0-3.7V

27.4*12.5*4.3mm

Internal 6Mbit

BC31A223A-IVN-E4

V2.0

6

BMX-03B

2.0-3.7V

27.4*12.5*4.3mm

Internal 6Mbit

BC41C671A-IPK-E4

V2.0+EDR

7

BMX-03C

3.3V

32.6*12.5*4.3mm

External 8Mbit

BC417143B-IQN-E4

V2.0+EDR
