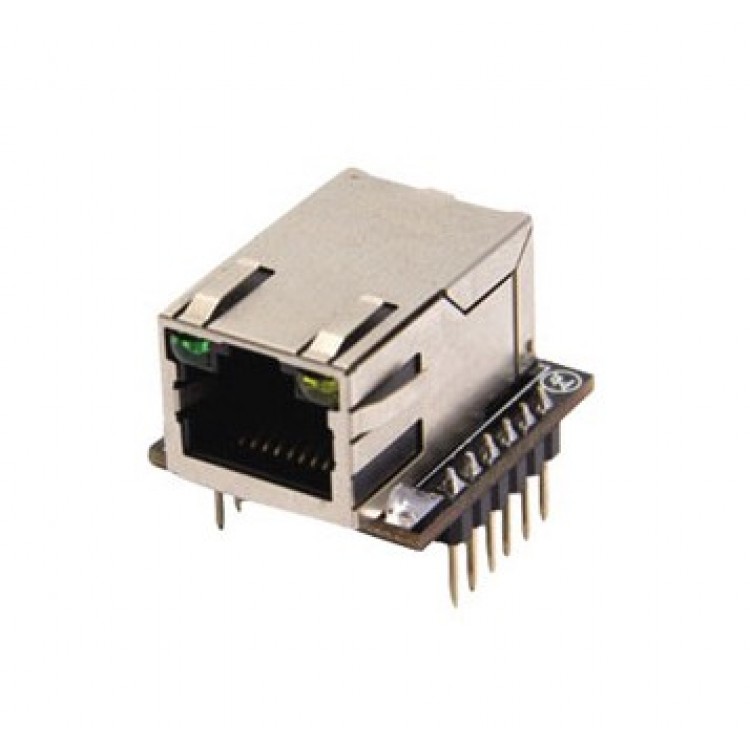

Wiznet WIZ820IO plug-in internet-offload Ethernet Module

WIZ820IO is a plug-in internet-offload network module that includes WIZnet’s popular W5200 (TCP/IP hardwired chip + PHY), a mag-jack (RJ45 with transformer) and other peripheral logic. Housed in a very small form factor (23mm x 25mm) with two rows of 0.1”-spaced pins, WIZ820IO can be used as a ready-made component Internet-enabling a product or board, and is an ideal soluion for users who want to develop networked systems rapidly.

WIZ820IO contains WIZnet’s hardwired Ethernet stack IC W5200, which supports 8 independent sockets simultaneously, and features a high-speed SPI interface, power-down mode, and Wake-On-LAN function.  WIZ820IO handles TCP, UDP, IP, ARP, ICMP, IGMP, PPPoE, and MAC protocols.  WIZ820IO operates on 3.3V/120mA  but is 5V tolerant, at temperatures from -40 ~ +85deg C. WIZ820io supports half / full duplex operation, auto-negotiation and auto cross-over detection.

Feature:
- Plug-in Network Module having W5200 & Mag Jack
- Usable without H/W design for W5200, Transformer and RJ-45
- Fast evaluation available for W5200 and MCU in the target board
- Supports 8 Independent sockets simultaneously
- Support high speed SPI interface
- Supports Power down mode and Wake-On-Lan function
- Very small form factor (PCB Size : 23mm x 25mm)

Specification:

Architecture
TCP / IP
W5200
PHY
Embedded in W5200
Interface
10/100 Base-T Ethernet (Auto detect)
Network
Protocol
TCP, UDP, IP, ARP, ICMP, IGMP, PPPoE, MAC
PCB size
23.0mm x 25.0 mm
Connector Type
2.54mm pitch 1x6 Pin header (2 Row)
Input Voltage
3.3V internal operation, 5V tolerant I/O
Temperature
Operation: -40 ~ +85 (Centigrade degree)
Storage: -40 ~ +85 (Centigrade degree)
Power consumption
10/100 Base-T max. 120mA (3.3V)
