WM8740+DIR9001 PCM2704USB DAC Decoder Board USB Coaxial Input RCA Audio Output AC 9-12V

Availability: In stock, usually dispatched in 1 business day

  • Price:$30.15
  • Price in reward points: 302 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $29.55 $28.94 $28.04 $26.83 Contact US
Quantity:

You might like

  • $0.00
  • $0.00
  • $0.00

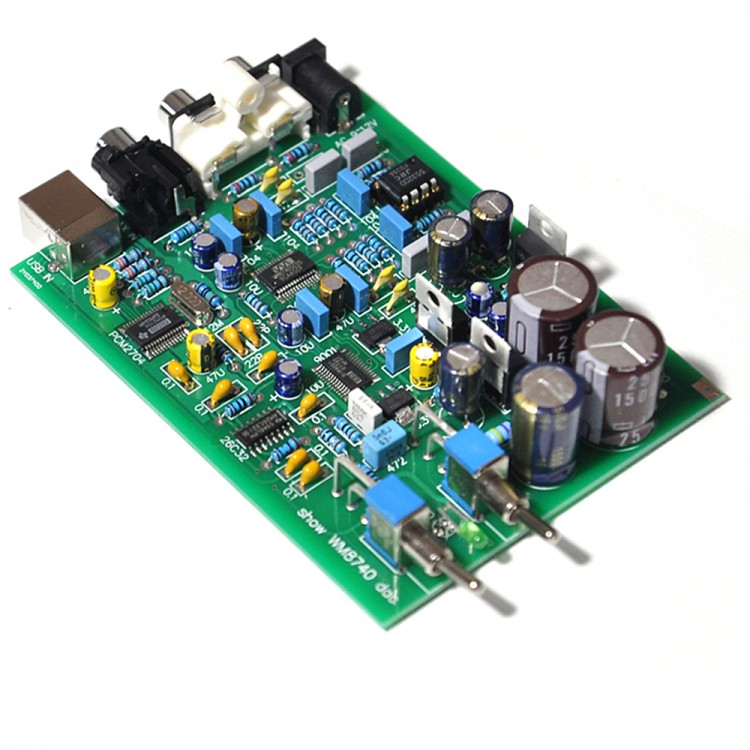

WM8740+DIR9001 PCM2704USB DAC Decoder Board USB Coaxial Input RCA Audio Output AC 9-12V

Specification:

- Input Voltage: AC 9-12V, 0.5A
- Plate Size: 82mm * 110mm
- USB converter chip coaxial uses a dPCM2704, functions and effects with PCM29 ** series is the same, whichever digital signal (S / PDIF), and uses high-precision active crystal 10PPM, quality has further improved.
- Digital receiver is DIR9001, sampling rate up to 24bit/96K
- Advanced 24bit/192K decoder chip WM8740 with digital signal (S/PDIF)
- Filter output dual op-amp JRC5532DD, and with op-amp socket
- USB input: 16bit 48k
- Coaxial input supports 24bit 44.1k-96k
- LM317, LM337, LM7805 Three-terminal regulator IC.
- Panasonic pitched top filter capacitor (FC series), (25V1500 *2  16V1500UF*1 )
- ELNA audio-specific capacitors.
- Philips BC, Siemens, EVOX other fever capacitors.
- Five Rings precision metal film resistors.
- Imported high-speed fast recovery rectifier diodes.
- Advanced gold-plated RCA output lotus seat, high-quality power supply. Input Switch.

Package included:
- 1 x Decoder Board
