• WS-2406 20VDC-45VDC 5A 12KHz Brushless Motor Controller Motor Driver

WS-2406 20VDC-45VDC 5A 12KHz Brushless Motor Controller Motor Driver

Availability: In stock, usually dispatched in 1 business day

  • Price:$43.34
  • Price in reward points: 433 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $42.47 $41.61 $40.31 $38.57 Contact US
Quantity:

WS-2406 20VDC-45VDC 5A 12KHz Brushless Motor Controller Motor Driver

Specification:
- PWM frequency:>=12KHZ
- Input signal is compatible with TTL
- Driving current: 5A
- Size: 85*59*19
- Wight: 0.11kg

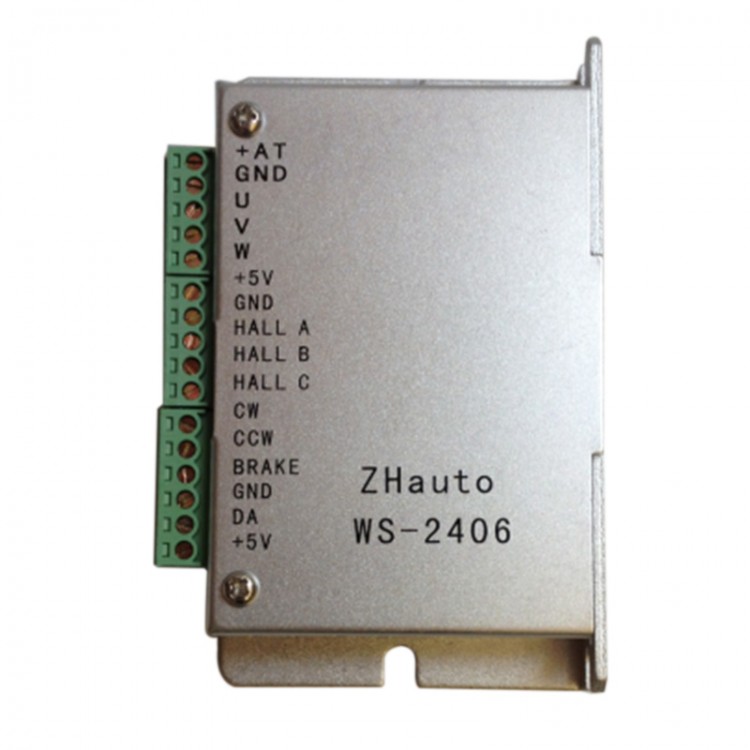

Pin:
- +AT, GND is for external power supply
- U port for motor U pin
- V port for motor V pin
- W port for motor W pin
- +5V for sensor power
- GND for sensor or control GND.
- HALL A is sensor A input
- HALL B is sensor B input
- HALL C is sensor C input
- CW is for motor forward direction.
- CCW is for motor reverse direction.
- AD for motor speed(0-5V)
- F(Hz)pin is HALL A out frequency

Electrical characteristic (Tj=25 deg C):
- Alternative voltage 20VDC-45VDC
- Max output current 5A.
- Insulating resistance is over 500MOhm

Parameters:
- Cooling method: naturally and imperatively
- Condition;avoid soot and corrosive air.
- Temperature: 0ºC-+50 deg C
- Humidity: 40-89%RH.

Power supply:
- Power supply voltage is between DC45V - DC20V that can work normally. The driver can use the non regulated DC power supply, also can use the transformer buck + bridge rectifier + capacitor filter, capacitor is more than 2200 F. However, the peak value of the voltage ripple is no more than 20V.
- If supply power by regulated one, the output current of the switching power supply should be greater than 10A.

Note:
1. Non-regulated power supply is good;
2. When there is non-regulated power supply, the output current should be greater than 60% of the driver current. When the regulated power supply is used, the current should be greater than that the driver setting;
3. In order to reduce the cost, the two or three drivers can share one power supply. But should increase the power of the rated power and rated output current and need to pay attention to heat dissipation.

Package included:
- 1 x Motor Driver
