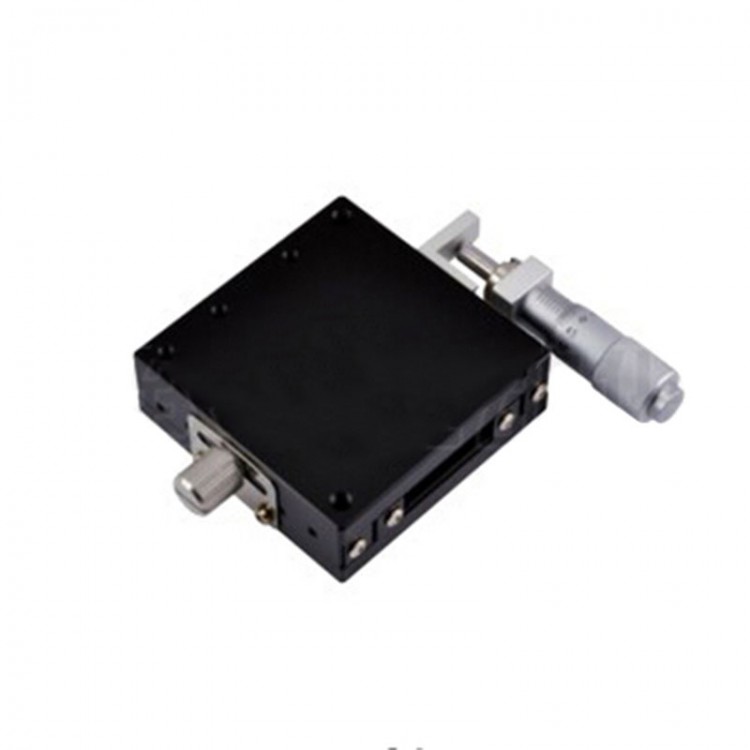

X Axis Trimming Station Micrometer Manual Displacement Platform Steel Ball Guide LGX40-R

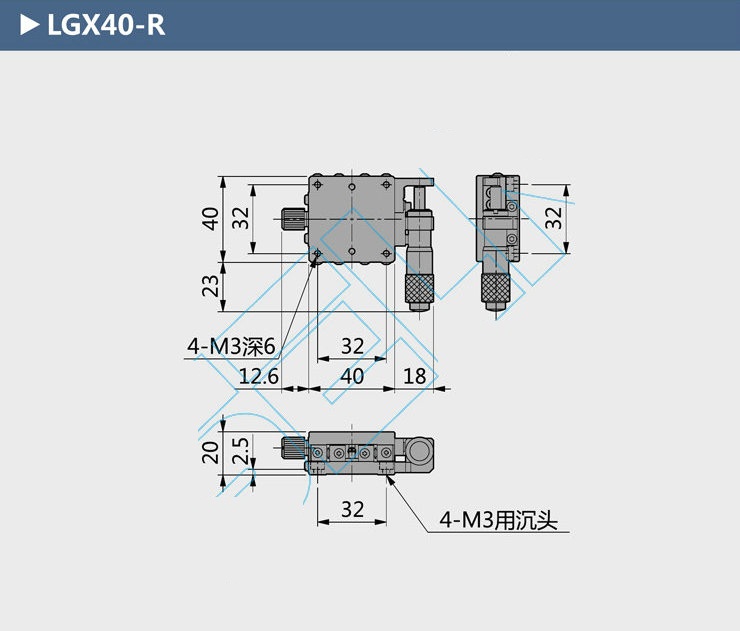

Specifications:
- Model: LGX40-R
- The direction of movement: X axis
- Drive: Differential head
- The table size: 40*40mm
- Material: Aluminum alloy ,black anode
- Table thickness: 20mm
- Travel: -+6.5mm
- Load: 19.6N(2kgf)
- Accuracy: 0.01mm
- Mobile parallelism: <=0.02mm/6mm
- Parallelism: 0.03mm
- Weight: 0.13kg

Package Contents:
- 1 x Manual Displacement Platform
