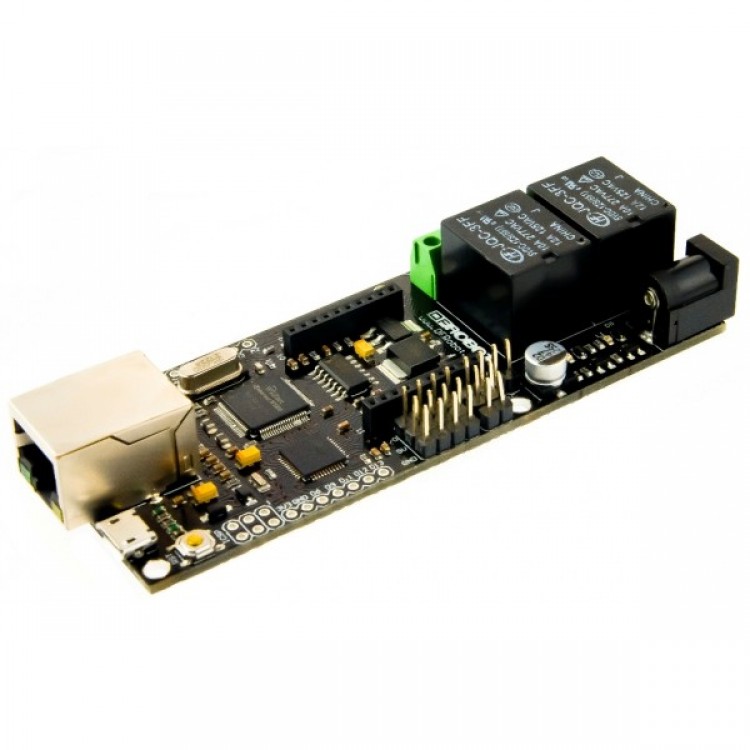

 X-board V3 Relay Module Based on Arduino Lendardo Ethernet

Introduction
- Internet of thing is becoming so easy.  With Xboard Relay, you can not only monitor data through internet, but also control it through internet.  The Xboard Relay combines an Atmega 32u4 microprocessor and wiz5100 chip which is fully compatible with Arduino Lendardo and Ethernet library, it has build-in  Xbee socket and 2 Relays which allow an easy play sensoring and controlling over internet.
- Not like previous X-board, X-board relay has no programming adapter required. A micro usb cable is the only hardware needed to upload sketch.

Specification
MCU:Atmega 32u4
Clock Speed:16 MHz
Flash Memory:32 KB (ATmega32u4) of which 4 KB used by bootloader
SRAM: 2.5 KB (ATmega32u4)
EEPROM: 1 KB (ATmega32u4)
Ethernet Chip:Wiz5100
Power Supply:7.2-12V
USB Supply:Micro USB@5V
Pin out:2 Analog/1 I2C/4 Digital Pin Out
Relay Information
Rated through-current: 10A (NO) 5A (NC)
Maximum switching voltage: 150VAC 24VDC
Digital interface
Control signal: TTL level
Contact Rating (Res. Load):10A 277VAC/24VDC
Max. switching voltage 250VAC/30VDC 250VAC/30VDC
Max. switching current 15A
Max. switching power 2770VA 240W 2770VA 240W
UL Rating: 10A 120VAC /10A 277VAC
Operate tiem (at nomi. Vot.): 10ms
Release time (at nomi. Vot.): 5ms

Shipping List
X-board Relay (1 unit)
