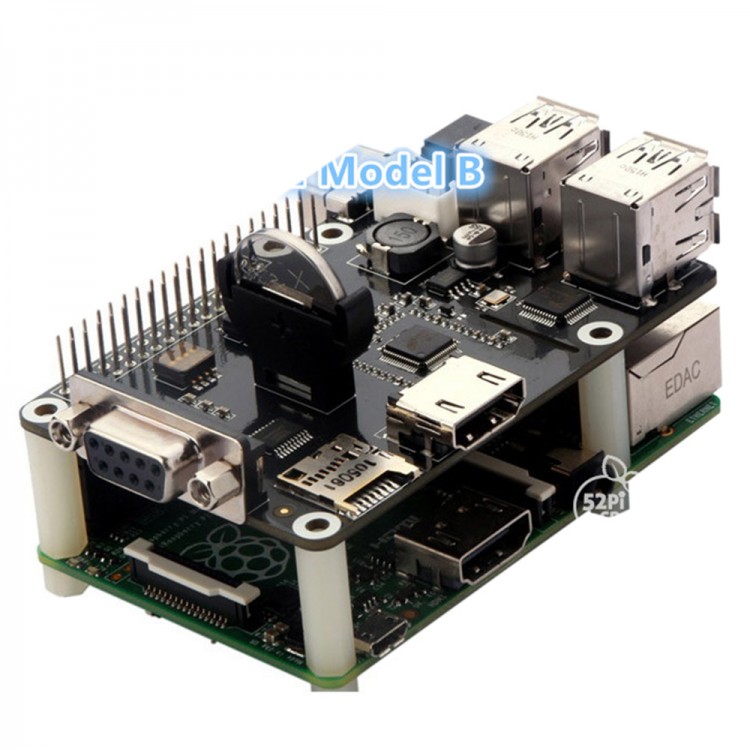

X105 Raspberry Pi Model B+ Expansion Board Adds VGA Output RTC RS232 Serial MicroSD Reader Writer
Specification:
- Input Voltage: 6V to 23Vdc converted to 5V, 3A via step-down DC/DC converter to power the Raspberry Pi
- VGA output: HDMI to VGA converter supporting up to UXGA (1600×1200) and 1080p with 10-bit DAC
- RS232 serial communication: Control the Raspberry Pi over RS232 or connect to external serial accessories
- USB Storage: Self-powered USB hub with 3 ports
- Real-time clock (RTC): Based on DS3231SN with included CR2032 battery
- MicroSD Card Reader/Writer:
Supports microSD / microSDHC / microSDXC
Convenient to write OS image
Misc:
- Power output socket
- Camera flex slot so camera can still be used with the expansion board attached
- DIP switch to remove connection from RPi’s pin header
- Directly connected on top of the Raspberry Pi using the board GPIO header pins
- No wiring nor soldering is required
- Duplicated the 40-pin header of the R-Pi in order to support existing expansion boards
- Suitable for Raspberry Pi Model B+ and Raspberry Pi 2 Model B
- Dimensions: 85 x 56mm (Same size as Raspberry Pi)
Note:
- This board applies to Raspberry Pi Model B+ and Pi Raspberry 2 Model B
- When using this board to supply power to Raspberry Pi motherboard, do not use the Micro-USB to its power supply, otherwise it may cause damage to the motherboard.
Package included:
- 1 x X105 expansion board
