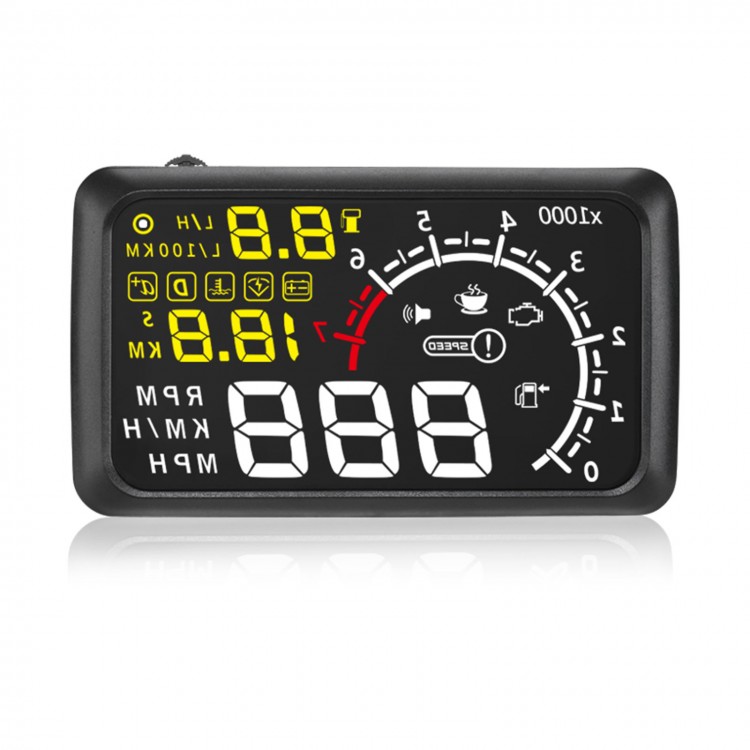

X3 5.5 inch Car HUD Head Up Display Car Styling Speeding Warning System 12V OBD II OBD2 Interface KM/H
- HUD is for drivers’ safety, at high speeds, especially in high-speed driving at night, in order to avoid the driver to look down their head to watch the instrument, and decrease car accident. HUD is in extremely critical moment reflects its delicate care. HUD can project the dashboard information (such as speed) onto the windshield, it can not only to help determine the speed of inexperienced novice to control their speed and avoid many of the speed limit road due to speeding violation. More importantly, it enables the driver instantly read the number in great vision and always make drivers eyes on the road in clear mind.
- Our HUD can display many useful information, and allows you to experience the speed and also to ensure your driving safety and driving pleasure.
- Our HUD uses the latest stable performance of integrated circuits design, the indexes are in line with the standards, unique and elegant shape, smooth lines, thin body natural beauty, for your car to add a beauty.
- Before you use our HUD, please read the instructions in detail, in order to make full use of all the features of the HUD
- This HUD built in ELM327 and with bluetooth version function. Not only you can use the HUD to read all the information on windowscreen, but also you can download OBD APP from Android phone to read more information.
- This is the ordinary version.
User manual: Click here
HUD main features
- Plug and play. HUD can automatically adapt to vehicle type which in line with OBDII or EUOBD(On-Board Diagnostic System).
- Comprehensive display. HUD can display many parameters at the same time as follows, vehicle speed, engine speed, water temperature (voltage, throttle valve position, ignition advance angle, time of 100 km acceleration),fuel consumption, mileage, low fuel tips, engine failure.
- Three display mode. Driver can chose normal display mode, high- speed display mode and automatic display mode.
- Free switch. Km and mile can be switched freely.
- Suitable size. The display area is 5.5 inches which is very clear for driver to read data.
- Automatic power on and off. Starting with the vehicle starting, stopping with the vehicle stopping to protect the vehicle’s battery. Moreover, HUD can also power on and power off by manual, which is more easy to control HUD.
- Flexible alarm mode. HUD can offer single-stage and four-stage overspeed alarm modes to choose to make driving safer.
- Engine speed alarm. It contributes to shift gear in time to save fuel also has significance to new driver.
- Flexible brightness adjustment. The brightness can be adjusted automatically or manually to reach the best state which is in harmony with the environment.

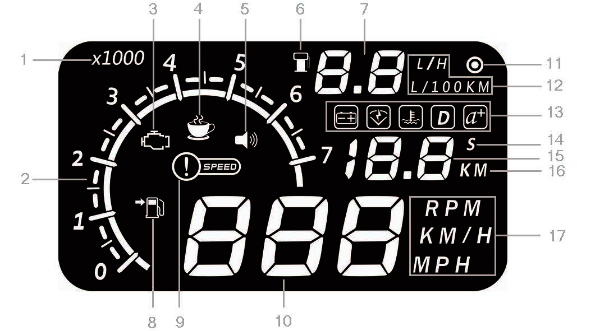

1.Rotating speed unit
2.Rotate speed: 1 means 1000r/min
5.Alarm sound switch
6.Fuel consumption icon
10.Parameter for RPM,KM/H,MPH
11.L/H: Fuel consumption per hour
12.L/100KM: Fuel consumption of 100KM
13.Voltage,Throttle position,Temperature, Ignition angle, Acceleration
14.S: single driving time, the unit is second
15.Parameter for driving time and driving distance.
16.KM: single driving distance, the unit is KM.
17.RPM,KM/H,MPH: Rotating speed per minute,KM per hour,Mile per hour
Main Technical Indicators
- Environment temperature: -400C~+800C
- Barometric press: 86—106 KPa
- Relative humidity: 10%—95%
- Environment voice: <=60 dB(A)
- Alarm of sound level:> =30dB(A)
- Work voltage: 9V~16Vdc(12Vdc/400mA)
- Size of product: 150*85*14 (mm)
- Weight of product: 278g
OBD2 Car HUD support OBD II Car:
- For Europe and North America,it only can be used for Vehicle/Car with OBD2 manufactured after 2003.For Asia, it only can be used for Cars with OBD2 manufactured after 2007.
- Do not Support OBD I and JOBD (Japanese OBD) Car.
- 1 x Car HUD Head Up Display
