X300 Raspberry Pie Expansion Board Compatible with Raspberry Pie B+ 2 for Arduino DIY
Description:
It integrates extremely important functions such as RTC real time clock, audio input and output, self powered USB hub, SATA data interface, Bluetooth wireless communication, WiFi wireless Internet, etc.. Have it, so you can more easily use raspberry pie, and saves you more precious time and energy.
Compared to Expansion Shield X200 , it adds many new features such as SATA interface, Bluetooth communication, etc., but also reduces VGA and HDMI video interface
Specification:
- With the same size as Raspberry Pi PI motherboard (85 x 56mm)
- Install directly to raspberry pie on the motherboard, nylon column screws, without additional welding
- High efficiency buck DC/DC converter to the main board stable power supply, 6-18VDC input, 5V maximum 4A output
- Support WiFi wireless Internet, equipped with high gain external antenna
- Support Bluetooth serial communication
- Support Infrared receiving (38KHz)
- Support microphone input and audio output, 3.5mm headphone jack is more convenient to connect the headset
- Microphone input and audio power amplifier (3.3Wx2) output interface
- With the SATA interface can be connected SATA devices such as hard disk, CD-ROM etc.
- With power output interface (5V, DC input voltage) to facilitate the supply of other devices such as SATA hard drive
- Support for self powered USB hub (3 downstream ports)
- Based on DS3231SN real-time clock function, equipped with CR2032 button battery
- A dial switch can be disconnected from the raspberry pie board, no influence to other expansion board
- Can connect to other expansion board through its pin
- Can facilitate the use of raspberry pie FPC motherboard connector
- Applicable to Raspberry Pi Model B+ PI and Raspberry Pi 2 Model B
Note: when using this extended board supply power to the Pi Raspberry board , do not through Micro-USB to its power, otherwise it may cause damage to the motherboard.
Instructions: click here

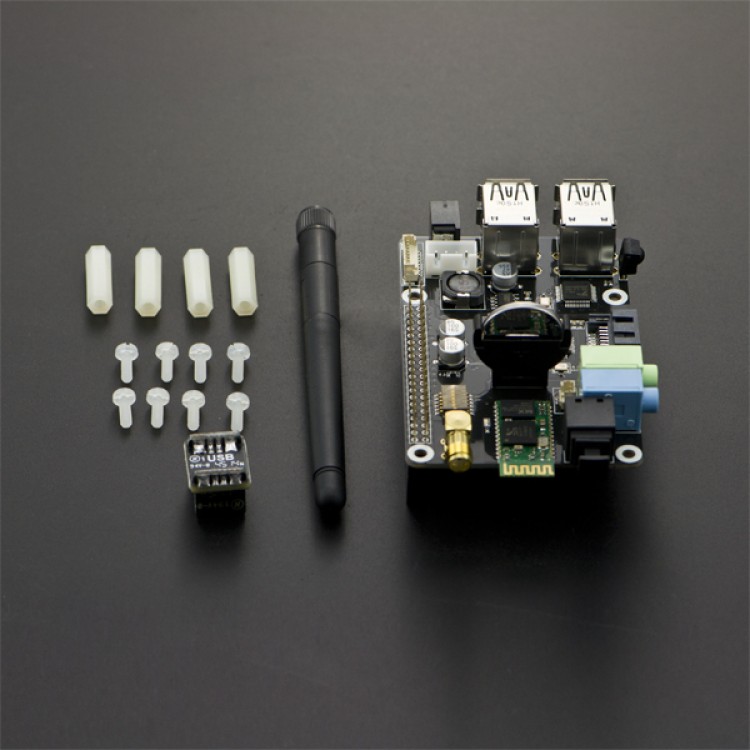

Package included:
- X300 expansion board x1
- USB connector x1
- 2.4GHz WIFI antenna x1
- Nylon column ( M3 x 20mm ) x4
- Nylon screw (M3 6mm) x8
