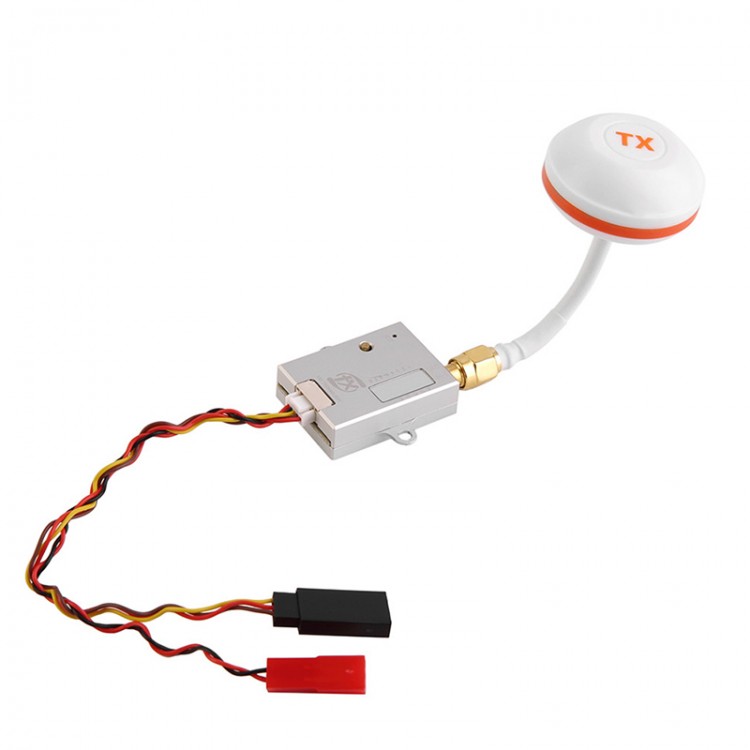

• X40-2 5.8GHz Weirless AV Transmitter 40CH 200MW with Antenna Case Radiating for Multicopter

X40-2 5.8GHz Weirless AV Transmitter 40CH 200MW with Antenna Case Radiating for Multicopter

Availability: In stock, usually dispatched in 1 business day

  • Price:$32.09
  • Price in reward points: 321 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $31.45 $30.81 $29.84 $28.56 Contact US
Quantity:

X40-2 5.8GHz Weirless AV Transmitter 40CH 200MW with Antenna Case Radiating for Multicopter

Features:

- Modulation: Broadband FM modulation
- Video format: NTSC / PAL
- Output impedance: 50 ohm
- Output power (min): 25dBm
- Output power 26dBm (typical):
- Output power (max): 27dBm
- Frequency range: 5645-5945mhz
- Working voltage: 7V (mins)
- Working voltage: 12V (typical)
- Working voltage: 20V (max)
- Supply current: 260mA
- Output voltage (Vout): 5V
- Operating temperature (min): - 1085 degree C
- Video bandwidth: 8Mz
- Audio frequency wave carrier frequency: 6.5Mz
- Video input level (minute): 0.8vp-p
- Video input level (typical): 1.2Vp-p
- Video input level (maximum): 1.2vp-p
- Video input impedance: 75 ohm
- Audio input level (min): 0.5Vp phosphor
- Audio input level (maximum): 2.0vp-p
- Audio input impedance: 10K ohm
- Weight: 7.5gram (S)
- Antenna connector: SMA female connector

Package Included:
- 1 x wireless AV transmitter module kit
