Xadow-Compass 3-Axis Digital Compass Sendor Module Direction Sensing for Arduino DIY
Description:

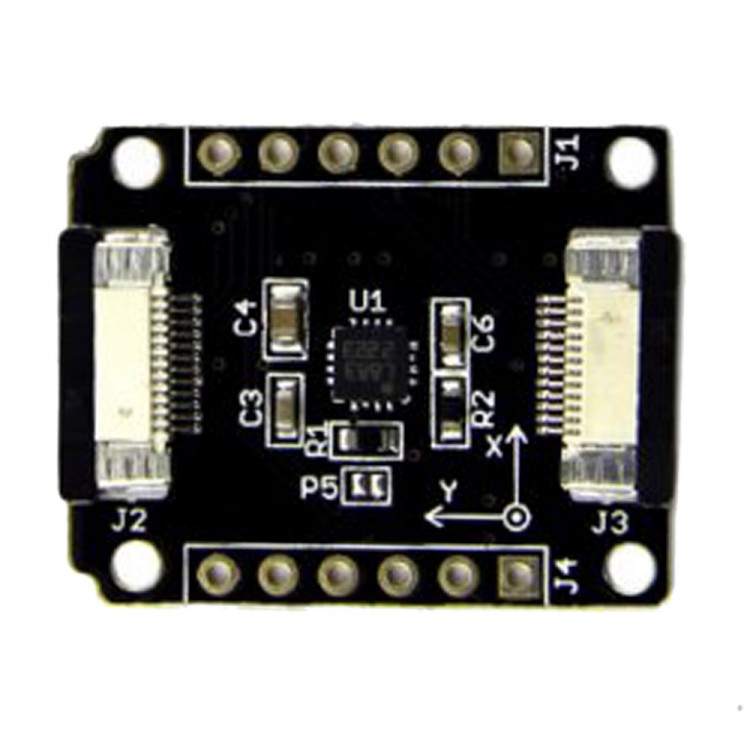

Xadow Compass is a 3-Axis Digital Compass which is a member of Xadow family. The module is based on a low field magnetic sensor HMC5883. It features 1° to 2° compass heading accuracy, and it is using I2C serial bus to communicate with your microcontroller. Xadow Compass is a useful tool for helping you to get the direction information.
Specification:
- Working voltage: 3.3V
- Linearity: 0.1(Max) ±% FS
- Resolution: 10 milli-gauss
- Mag Dynamic Range: ±1 ~ ±8 gauss
- Operating Temperature: -30 ~ +85 °C
- Dimensions: 25.43mm x 20.35mm
IIC Address:
- 7-bit address: 0x1E
- 8-bit read address: 0x3D
- 8-bit write address: 0x3C
More information: click here
Package included:
- 1 x Digital Compass Sendor Module
