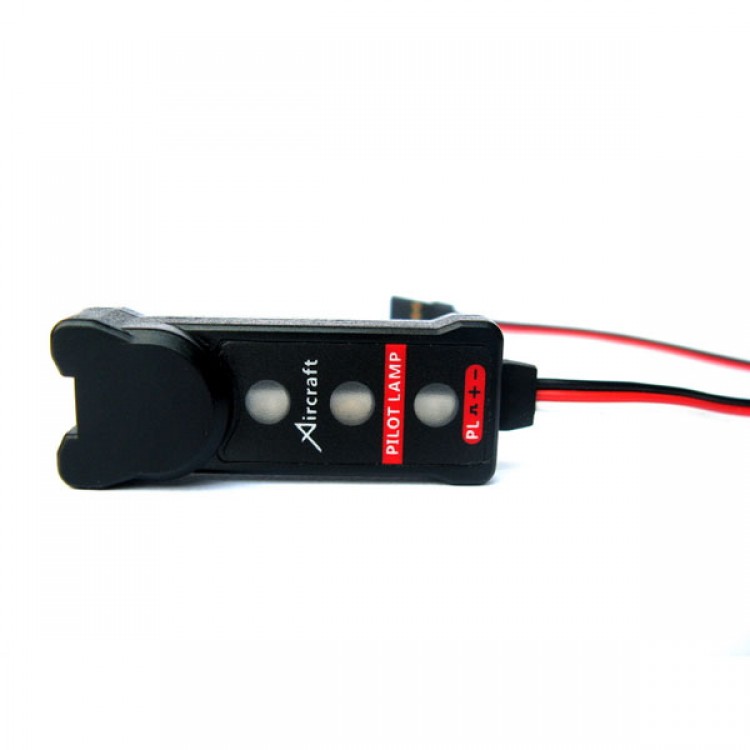

XAircraft Pilot Lamp E1030 Work on FC1212S Flight Controller


XAircraft Pilot Lamp is used for indicating the status of copter, showing flight mode, function status and warning.
Works on all XAircraft products equiped with the FC1212S Flight Controller
You only need to plug the Pilot Lamp to output12 on FC1212-S to start to use it. And it requires v1.33 or higher FC firmware.


Design Rules
There's several rules when designing the indications that will make users understand the beeps and light flashes more easily.
- The faster the buzzer beeps, the more emergent is.
- The faster the flight flashes, the more careful user should be.
- The RED light only light up when serious problem occurred.

Symbols



Symbol Buzzer Indication Light Indication
. short beep short flash
- long beep long flash
x interval (the interval between two indications) interval
() repeat repeat
~ yowl (beeping always) always on

for example(buzzer): (.x) means the buzzer will short beep again and again, (-.x) means the buzzer will has a long beep then a short beep, and repeats long beep short beep.

Indications

Buzzer Green Light Blue Light Red Light Indication
.       Function Changed. When you switch the function status (change Flight Mode, turn on/off carefree, turn on/off heading hold, including all the functions that use switches), then buzzer will beep once to tell you the FC has reacts your operation.
(..x)       RC Signal lost, that means the receiver is disconnected with the radio. But not support all the receivers.
  (..x)     Flight Mode is NORMAL(CRUISE MODE).
    (..x)   Flight Mode is ATTITUDE(HOVER MODE), and GPS is not plugged-in.
    (-x)   GPS is plugged-in, but not available.
    ~   GPS is ready. Position Hold and Return to Home are available.
(……)     (……) AHRS is disconnected.
(……) (……) (……) (……) This is a special signal that can be turn on by your radio. When 'Show Lamp!' is on, the buzzer and lights will shows this signal. It can help you to find the copter when you lost it in the grass.
