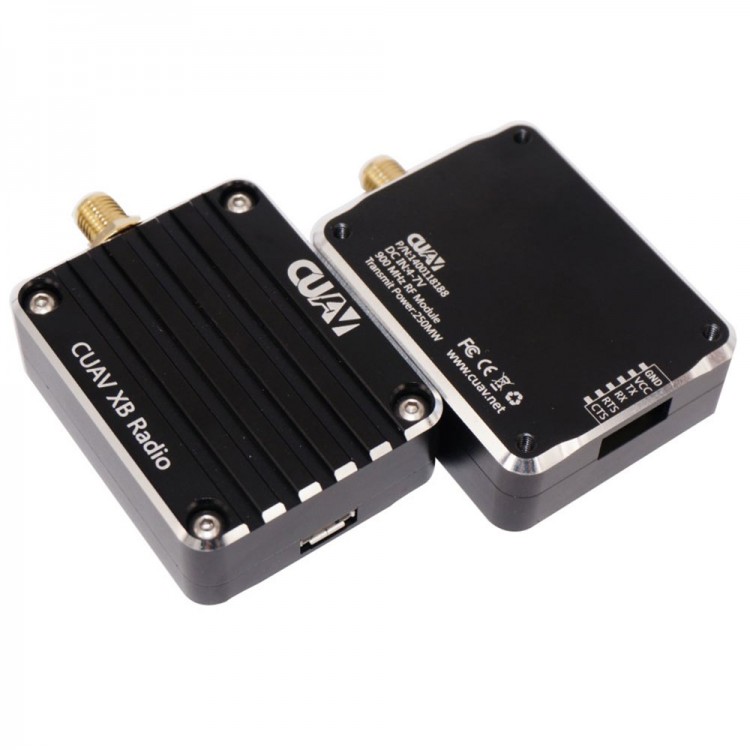

Xbee 900HP Transmitter Receiver 250mW Radio Telemetry with Protective Shell for Pixhawk Flight Controller

Availability: Out Of Stock

  • Price:$210.00
  • Price in reward points: 2100 Reward Points: 21
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $205.80 $201.60 $195.30 $186.90 Contact US
Quantity:

Xbee 900HP Transmitter Receiver 250mW Radio Telemetry with Protective Shell for Pixhawk Flight Controller

Introduction:

XBee-PRO 900HP embedded modules provide best-in-class range wireless connectivity to devices. They take advantage of the DigiMesh networking protocol, featuring dense network operation and support for sleeping routers, and are also available in a proprietary point-to-multipoint configuration. Supporting RF line-of-sight ranges up to 28 miles (with high-gain antennas), and data rates of up to 200 Kbps, these modules are ideal for extended-range applications requiring increased data throughput.

The XBee-PRO 900HP requires no programming and can be configured easily using Digi’s free X-CTU software or via a simplified AT command set. XBee modules are pre-certified for use in multiple countries, further reducing development costs and time to market.

XBee modules are easy to use, share a common hardware footprint and are available in a variety of different protocols, enabling users to substitute one XBee for another with minimal development time and risk

Specification:
- Processor: ADF7023 transceiver, Cortex-M3 EFM32G230 @ 28 MHz
- Frequency Band: 902 to 928 MHz, software selectable channel mask for interference immunity
- Antenna Options: Wire, U.FL and RPSMSA
- RF Data Rate: 10 Kbps or 200 Kbps
- Indoor/Urban Range: up to 2000 ft (610 m)
- Outdoor/ Line-Of-Sight Range: Up to 9 miles (14 km) w/ dipole antenna; Up to 28 miles (45 km) w/ high-gain antenna
- Transmitter Power: Up to 24 dBm (250 mW) software selectable
- Receiver Sensitivity: -101 dBm @ 200 Kbps, -110 dBm @ 10 Kbps
- Data Interface: UART (3V), SPI
- GPIO: Up to 15 Digital I/O, 4 10-bit ADC inputs, 2 PWM outputs
- Networking Topologies: DigiMesh, Repeater, Point-to-Point, Point-to-Multipoint, Peer-to-Peer
- Spread Spectrum: FHSS (Software Selectable Channels)
- Supply Voltage: 2.1 to 3.6 VDC
- Transmit Current: 215 mA
- Receive Current: 29 mA
- Sleep Current: 2.5 uA
- For Xbee 900HP radio telemetry with TTL interface
- Includes protective case
- Antenna weight: 24g
- XBEE weight: 11g
- XBEE case weight: 23g
- XBEE telemetry with antenna: 58g
- For Pixhawk flight controller

Package List:
- Xbee pro 900 HP 250mW telemetry *2
- XBEE base USB *1/ TTL *1
- 3db antenna *2
- Cable *1
- MINI USB cable *1
