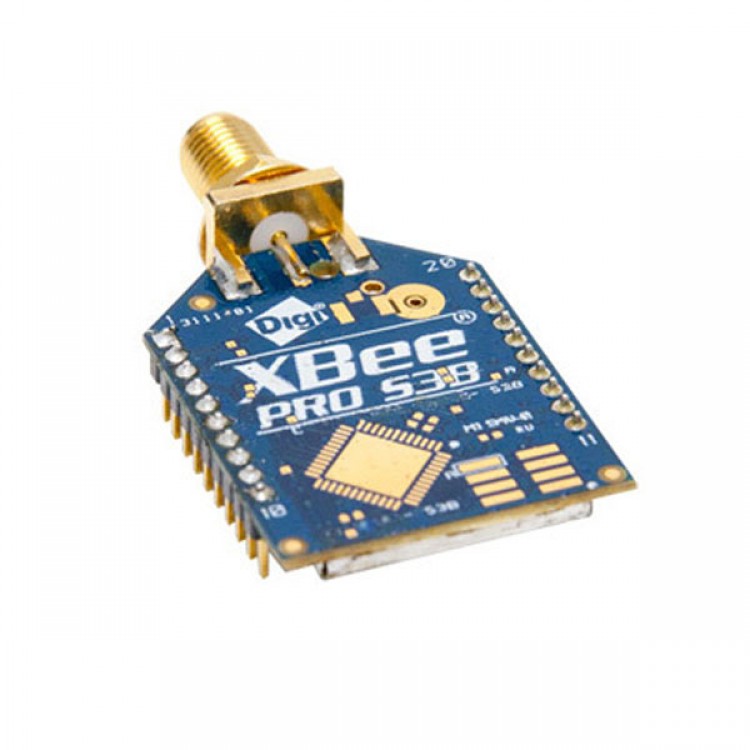

• XBee-PRO 900HP (S3B) DigiMesh 920MHz 250mW Long Distance Telemetry Transmitter Module

XBee-PRO 900HP (S3B) DigiMesh 920MHz 250mW Long Distance Telemetry Transmitter Module

Availability: Out Of Stock

  • Price:$94.90
  • Price in reward points: 949 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $93.00 $91.10 $88.26 $84.46 Contact US
Quantity:

XBee-PRO 900HP (S3B) DigiMesh 920MHz 250mW Long Distance Telemetry Transmitter Module

Description:
- XBee-PRO 900HP embedded modules provide best-in-class range wireless connectivity to devices. They take advantage of the DigiMesh® networking protocol, featuring dense network operation and support for sleeping routers, and are also available in a proprietary point-to-multipoint configuration. Supporting RF line-of-sight ranges up to 28 miles (with high-gain antennas), and data rates of up to 200 Kbps, these modules are ideal for extended-range applications requiring increased data throughput.
- The XBee-PRO 900HP requires no programming and can be configured easily using Digi’s free X-CTU software or via a simplified AT command set. XBee modules are pre-certified for use in multiple countries, further reducing development costs and time to market.
- XBee modules are easy to use, share a common hardware footprint and are available in a variety of different protocols, enabling users to substitute one XBee for another with minimal development time and risk

Specifications:
- Hardware :XBee-PRO® 900HP
- Hardware
- Processor :ADF7023 transceiver, Cortex-M3 EFM32G230 @ 28 MHz
- Frequency Band: 902 to 928 MHz, software selectable channel mask for interference immunity
- Antenna Options :Wire, U.FL and RPSMSA
Performance
- RF Data Rate : 10 Kbps or 200 Kbps
- Indoor/Urban Range: up to 2000 ft (610 m)
- Outdoor/ Line-Of-Sight Range:Up to 9 miles (14 km) w/ dipole antenna; Up to 28 miles (45 km) w/ high-gain antenna
- Transmit Power: Up to 24 dBm (250 mW) software selectable
- Receiver Sensitivity :-101 dBm @ 200 Kbps, -110 dBm @ 10 Kbps

Features
- Data Interface:UART (3V), SPI
- GPIO : Up to 15 Digital I/O, 4 10-bit ADC inputs, 2 PWM outputs
- Networking Topologies : DigiMesh, Repeater, Point-to-Point, Point-to-Multipoint, Peer-to-Peer
- Spread Spectrum :FHSS (Software Selectable Channels)
Power
- Supply Voltage :2.1 to 3.6 VDC
- Transmit Current : 215 mA
- Receive Current : 29 mA
- Sleep Current : 2.5 uA
- Regulatory: Approvals
- FCC (USA) : MCQ-XB900HP
- IC (Canada) : 1846A-XB900HP
- C-Tick (Australia) :Yes
- Anatel (Brazil) :Pending
