XILINX FPGA SPARTAN6 LX16 DDR3 Development Board 1G DDR3 128M FLASH Gigabit Ethernet for Arduino

Availability: Out Of Stock

  • Price:$223.16
  • Price in reward points: 2232 Reward Points: 22
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $218.70 $214.23 $207.54 $198.61 Contact US
Quantity:

XILINX FPGA SPARTAN6 LX16 DDR3 Development Board 1G DDR3 128M FLASH Gigabit Ethernet for Arduino

ISE 14.7 software: Click here  Password: rrfq
User manual: Click here

Feature
- XILNX FPGA XC6SLX16
- 1000M Ethernet interface
- 1Gbit DDR3
- High speed USB 2.0 interface
- 500M camera module
- 16bit VGA interface
- USB to serial
- RTC
- EEPROM
- SD card seat
- 40P Extended port
- JTAG Debugger interface

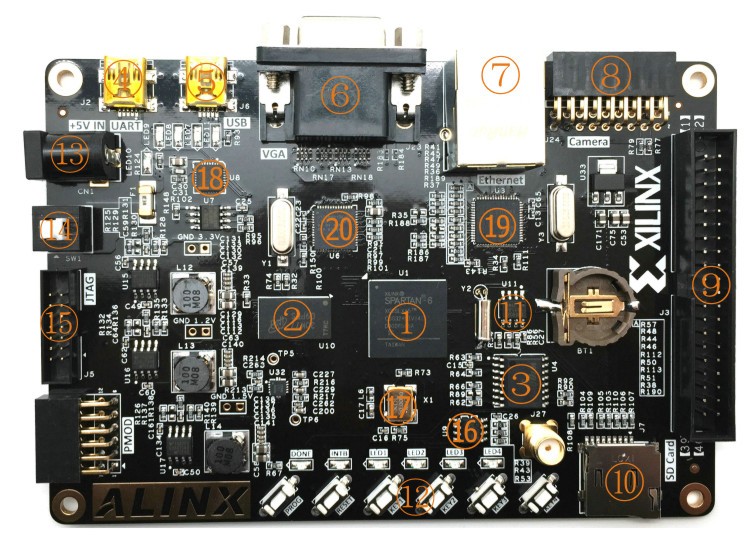

Board details:
1. FPGA XC6SLX16
2. DDR3 1Gbit
3. FLASH 128Mbit
4. USB to serial
5. High speed USB 2.0 interface
6. VGA interface
7. Gigabit Ethernet interface
8 Camera interface
9. The 40Pin Extended port
10. SD card socket
11. RTC DS1302
12. The 4 Independent key press + reset key
13. Power interface
14. Power switch
15. JTAG interface
16. EEPROM 24LCD04
17. The 50M Active Crystal Oscillator
18. USB to serial chip CP2102
19. The 1000M network RTL8211
20. USB chip CY7C68013

Xilnx Platform Cable USB Characteristic
- Fully compatible with Platform Cable USB I, support ISE (including the latest 12.3), EDK, Chipscope and other software. Download the firmware all are 11.5 version, down support for a variety of low version of the software (at least ISE6.3.03 more than 7.1 above), the firmware can be automatically updated as the original line.
- Based on the original factory CY7C68013A+XC2C256CPLD circuit structure
- Supports Windows and Linux systems
- Automatic detection and adaptation to target I/O voltage
- Supports the use of 5V (TTL), 3.3V (LVCMOS), 2.5V, 1.8V and 1.5V interface level of the device
- LED status indicator
- SPI interface PROM flash devices for programming

Supports all XILNX devices, including
- All Virtex FPGA devices (including virtex6)
- All Spartan FPGA devices (including Spartan6)
- XC9500/XC9500XL/XC9500XV CPLD devices (various voltage)
- CoolRunner XPLA3/CoolRunner-II CPLD device
- XC18V00 ISP PROM series
- Platform Flash XCF00S/XCF00P/XL PROM series
- XC4000 series FPGA

Package List:
- FPGA Development board  x1
- Mini USB line  x1
- 5V Power Adapter   x1
- Clear Case x1
