Xilinx Platform Cable USB FPGA/CPLD JTAG DLC9G In-circuit Configuration and Pogramming XILINX

Description:
- The Platform Cable USB a USB compatible cable for in-circuit configuration and programming of all Xilinx devices. It is compatible with the original XILINX Platform Cable USB.

Key Features
Performance
*Using CY7C68013A+XC2C256 solution, fully compatible with the original XILINX Platform Cable USB
*Supports all Xilinx devices, FPGA configuration and PROM/CPLD programming
*Supports JTAG, Slave-Serial and SPI
*Interfaces to devices operating at 5V (TTL), 3.3V (LVCMOS), 2.5V, 1.8V and 1.5V
*Selectable target clock frequency, supports software automatic frequency adjustment

Supported Software
*Xilinx ISE
*iMPACT
*ChipScope

Supported Devices
*All Xilinx devices, FPGA configuration and PROM/CPLD programming

Connects to PC
*Computer connection via USB interface

Connects to target board
*Target board connection via JTAG, Slave Serial, SPI interfaces. The figure below shows the header pinouts of different interfaces:

LED Status
    Red and Purple: USB connected
    Purple: USB connected, and Vref (the target board) is powered

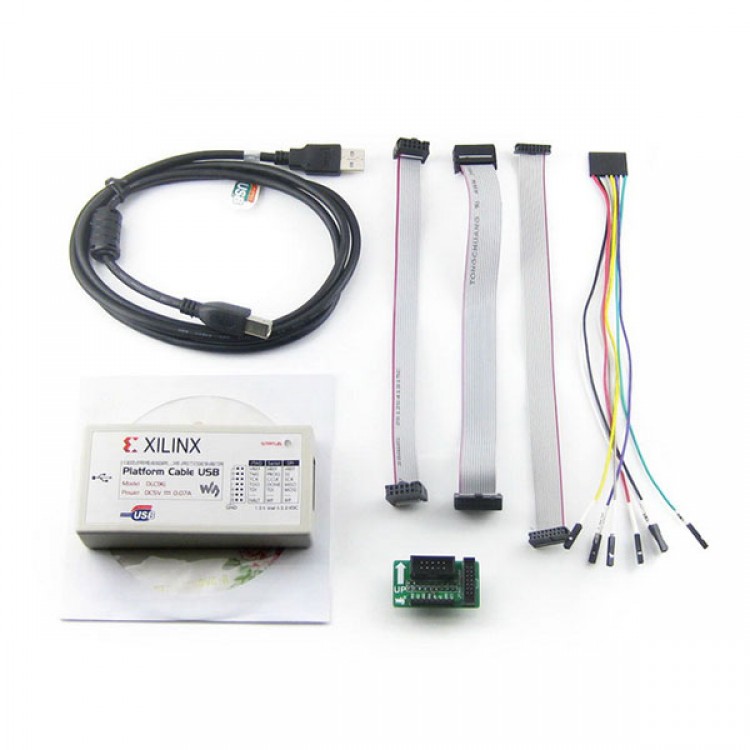

Package Contains
- Platform Cable USB × 1
- JTAG adapter × 1
- USB cable × 1
- 8-pin to 7-pin separated cable × 1
- 14-pin (2.5mm pitch) JTAG cable × 1
- 14-pin (2mm pitch) JTAG cable × 1
- 10-pin (2.5mm pitch) JTAG cable × 1
- User Guide CD × 1
