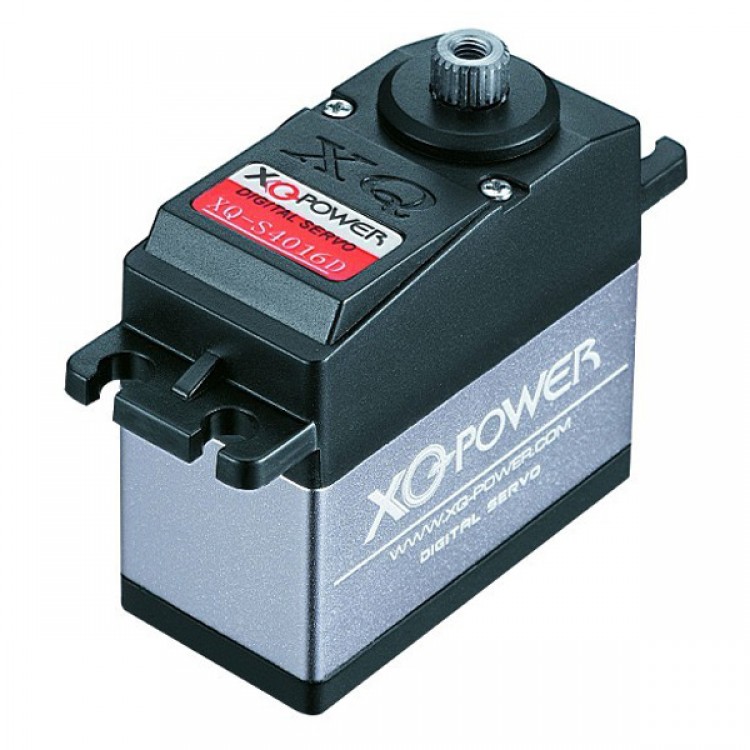

XQ-POWER XQ-S4016D Metal Digital Servo for RC Model 17.5kg/6.0V
  • XQ-POWER XQ-S4016D Metal Digital Servo for RC Model 17.5kg/6.0V

  • SKU:19705
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 4
  • Price:$41.53
  • Price in reward points: 415
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $40.70 $39.87 $38.62 $36.96 Contact US

XQ-POWER XQ-S40163D Metal Digital Servo for RC Model 17.5kg/6.0V

High Quality digital servos from XQ Power featuring high voltage circuitry. The Titanium gears and high grade cables help to tame the power while the plastic and metal case helps disperse heat and reduce flex during use.

- Support high voltage
- Titanium Gear
- Waterproof
- Plastic case, resist heat and corrosion
- Aluminium middle hull, easy to eliminate heat
- Adopt high quality coreless motor
- Small dead band width and high speed signal transmitting and receiving


- Dead band: 2μs
- Control System: PWM
- Operating Temperature Range: -25 ~ 70℃
- 360° Modifiable: NO
- Motor Type: Coreless Motor
- Bearing Type: Dual Ball Bearings
- Gear Type: Titanium Gears
- Programmable: NO
- Speed:  4.8V: 0.14sec/60°, 6.0V: 0.12sec/60°
- Torque: 4.8V: 15.5 kg/cm , 6.0V: 17.5 kg/cm
- Voltage: 4.8V-6.0V
- Size: 40.1*20.1*36.8mm
- Weight: 57.5g

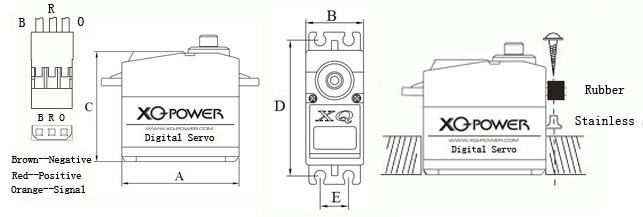

Assembly Drawing
