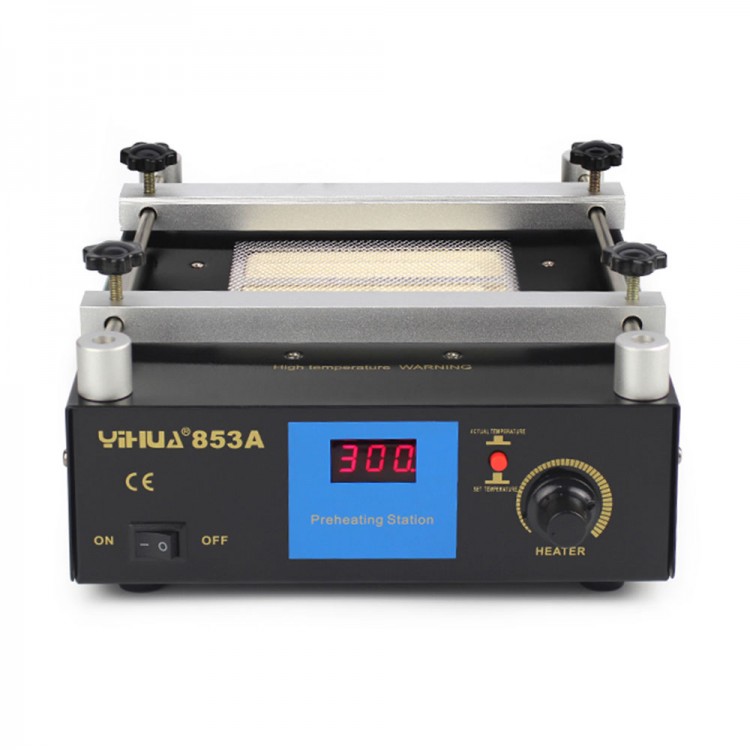

YIHUA 853A Lead-Free Preheat Rework Station Motherboard BGA Preheating Soldering Station for SMT Rework Repair
Features:
- Import infrared heating ceramic body, quick heating, high efficiency, long service life.
- Take a thermometer, convenient PCB temperature detection.
- Sensor closed loop PID control, temperature precise stable.
- Can be used in the circuit board preheat, and other need whole even heating process.
- Antistatic design.
Specification:
- Heating power: 600 W
- Heating area: 130 X130mm
- Heating Hugh material: ceramic heating body
- The temperature sensor: K thermocouple type
- Temperature range: 50 C-350 C
- The thermometer test range: 0-400 C
- Use of the environment temperature: 0-40 C
- Temperature stability degree is: +_1 C
- Envelop dimensions :255 (L) X200 (W) X63 (H) mm
- Weight: About 2.5 Kg
Operation:
A: preheat the original (with desoldering tools use)
1. Put the plug in the PCB powder, will be processed on the original preheater has right in the middle.
2. According to the size of the components of the PCB thickness set temperature, turn on the power switch, the preheater has will immediately; Heating up to you immediately well-posed temperature, then constant temperature.
B: remove the original
1: set up to process of PCB, put to the demolition of components in the preheated dish.
2: according to the size of the components, the thickness of the circuit board, PCB tin melting point, set the temperature.
3: set temperature, the temperature reaches constant after began warming, watch the components foot tin point light began to appear. When he saw the components of melting point feet used tweezers, will pick up components. When components dismantled and can\'t immediately move board, so when the PCB ministries of components of the tin pin point in near melting point, move board will shift other components. At this time, should will turn off the power to the PCB temperatures drop to room temperature to take down PCB.
Package List:
- 1 x Soldering Station
