• YL-500IW High Power Distance Wireless Digital Radio 433m Serialport Singlechip 232485 Wireless Transceiver

YL-500IW High Power Distance Wireless Digital Radio 433m Serialport Singlechip 232485 Wireless Transceiver

Availability: In stock, usually dispatched in 1 business day

  • Price:$71.01
  • Price in reward points: 710 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $69.59 $68.17 $66.04 $63.20 Contact US
Quantity:

YL-500IW High Power Distance Wireless Digital Radio 433m Serialport Singlechip 232485 Wireless Transceiver

Description

- YL - 500W is a high stability, low power consumption, cost-effective adopts the GFSK modulation method - of transparent wireless data transceiver module. Don't change any data and agreement of client, complete the data wireless transmission.
- The module is relatively general modules have the advantages of small size, high sensitivity, long transmission distance, high communication rate, internal automatically communication protocol conversion and data transceiver control, etc.
- Users can be configured through my company PC software according to their own needs flexible configuration module of serial rate, working channel, transmission power, parameters such as the communication rate.

Product specifications:
- Modulation mode: GFSK
- Working frequency: 433 m / 490 MHZ (315 m / 868 m / 915 m need customization)
- Transmission power: 500 mw
- Receiving sensitivity: - 124 DBM
- Emission current: ma 550 or less
- Receiving current: 30 ma or less
- Channel rate: 1200/2400/4800/9600/4800/9600/4800/9600 bit/s user can set
- Serial port rate: 1200/2400/4800/9600/19200/38400/19200/38400 bit/s user can set
- The interface data format: 8 e1/8 n1/8 o1
- Working power supply: dc + 5 to 15 V (RS232 / RS485 / TTL)
- Working temperature: - 20  ~ 85  relative humidity of 10% ~ 90%, no condensation
- Dimension: bare plate 60 mm * 40 mm * 13 mm (not including antenna bridge and cable)
- Metal case 45 mm * 65 mm * 15 mm
- Each type: * YL series all same frequency models between different frequency series products (communication)

Product features
- Of 500 mw power emission, standard level 7 can lower cost, high performance, high reliability
GFSK modulation mode, half duplex communication, send/receive conversion, air connection and control automatically
- Frequency: 315/433/490/868/915 MHZ exemption application spectrum
- Receiving sensitivity is as high as 124 DBM, transmission distance, more than 3000 m from the line height 2 meters, open without interference can be up to 4 km
- Launch working current is less than 550 ma, power up to 29 db
- Receive working current 30 ma (25 ma can be customized), dormancy current < 10 ua (TTL) requirements
- Standard configuration provides eight channel, meet the needs of a variety of network users is combination, users can configure by the software, the channel expansion ability
- Communication protocol conversion and rf transceiver switch automatically, users do not need to intervene, simple and easy to use
- Communication rate 1.2 KBPS 115.2 KBPS, users can through the software configuration
- Production debugging, wide working voltage range: 4.5 V to 4.5 V, industrial applications
- Three, scope of application
- Wireless line equipment, hotel electrondoor lock, biometric access control management system.
- Medical and electronic instrumentation automation control
- A. intelligent teaching equipment, baby care, medical ward call system
- Household appliances and lighting intelligent control
- Anti-theft alarm smart card, railway locomotive remote detection
- Water, electricity, gas, heating automatic meter reading charge system or reactive compensation and the power grid monitoring wireless conference vote, scoring system, PDA terminal, wireless order system
- LED wireless transmission text, images, and wireless control,
- Vehicle monitoring electron weighing apparatus, wireless crane scale, testing, aging equipment,
- A. industry equipment data wireless transmission and environmental monitoring
- Gimbal control video monitoring, access control attendance card reader
- A. weather/oil/water conservancy equipment information collection and the natural environment detection
- A. underground personnel positioning system of check on work attendance; Gas detection alarm; - Instruments and goods, medical equipment and other important assets and important personnel localization; Logistics supply chain management.
- Wind power streetlights wireless control, data monitoring solar photovoltaic inverter.

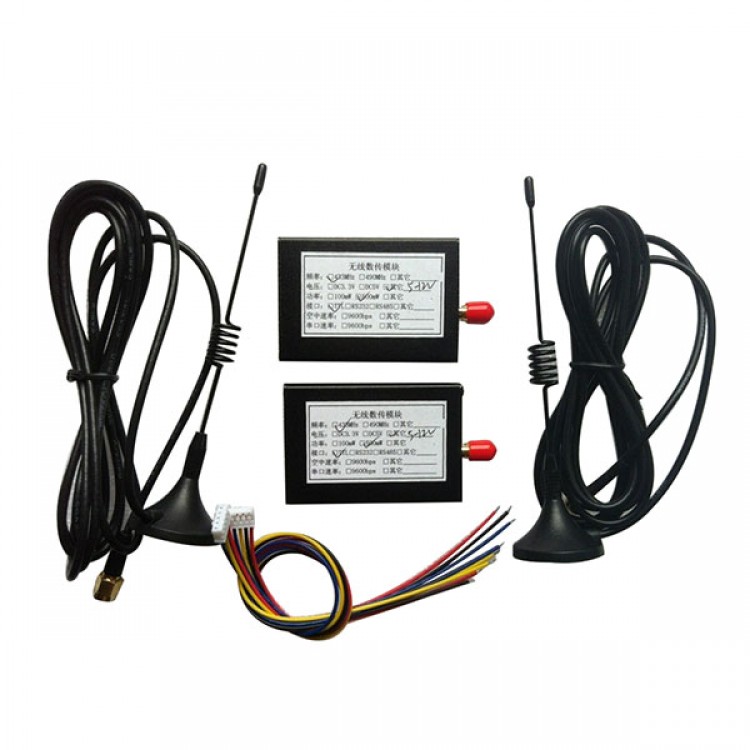

- Accessories: two modules, two root sucker antenna, two cables.
(manual, modify the software, debugging software, drive through online to customers, clients receive goods or purchase with the seller before)
- Module interface has: TTL, 232, 232. According to the customer to the interface of the delivery, the customer must have certain device interface. If the customer need to pick up computer USB interface, can buy a USB transfer 485 set up the line, or buy USB to TTL set the line as a transfer.
