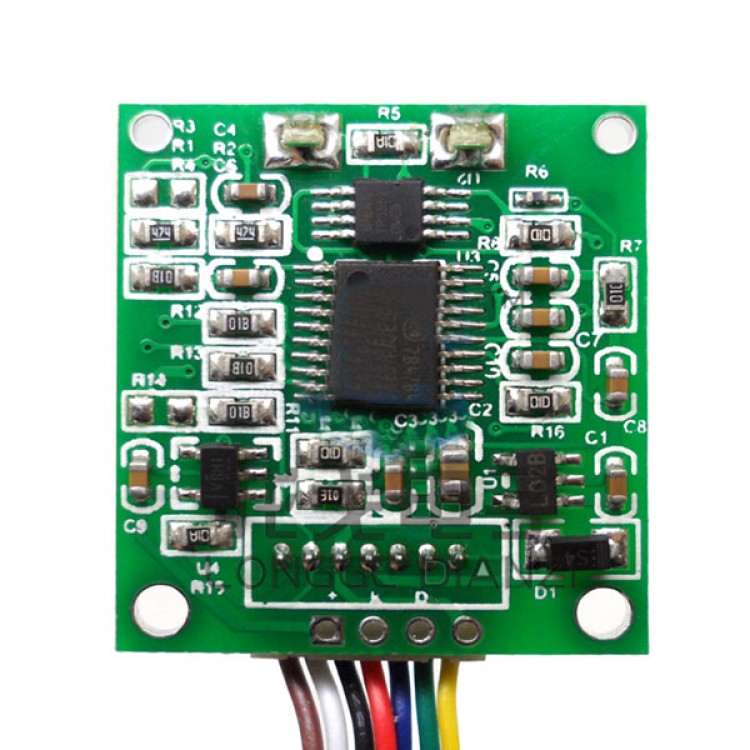

ZE08-CH2O Universal Chemistry Formaldehyde Module Group Sensor for Home Decoration

Availability: In stock, usually dispatched in 1 business day

  • Price:$43.77
  • Price in reward points: 438 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $42.89 $42.02 $40.71 $38.96 Contact US
Quantity:

ZE08-CH2O Universal Chemistry Formaldehyde Module Group Sensor for Home Decoration

Description:

- Brown wire: HD
- White wire: DAC (0.4-2V, to 0-full)
- Black wire: GND
- Red wire: Vin (Voltage input 3.7V-9V)
- Blue wire: UART (RXD) 0-3.3V data input
- Green wire:  UART(TXD) 0-3.3data output
- Yellow wire: PWM

Features:
- High sensitivity, high definition
- Low consumption
- Providing UART, analog voltage signal, PWM wave multitypes of output modes
- High stability, good excellent anti-inteference ability
- Temperature compensation, excellent linear output
- Long using life

Output data:
- DAC (0.4-2V standard voltage signal)
- UART output (3V electrical level)
- Working voltage: 3..7-9V
- Preheat time:<=3mins
- Responding time: <=60secs
- Resume time: <=60secs
- Range: 0-5mg/ square meter
- Definition rate: <=0.01ppm
- Working temp: 0-50degree
- Working humidity: 15%RH-90%RH
- Storage temp: 0-50degree
- Using time: 2 years
