Key Features:
1.Zynq Processor
Dual ARM Cortex-A9 MPCore
Up to 667 MHz operation
NEON Processing / FPU Engines

2.Memory
512 MB DDR3 memory (1066 Mbps)
256 Mb Quad SPI Flash
Full size SD/MMC card cage
4 GB SD Card Included

3.Connectivity
10/100/1000 Ethernet
USB OTG (Device/Host/OTG)
USB UART

4.Expansion
FMC (Low Pin Count)
Pmod headers (2x6)

5.Video/Display
HDMI output (1080p60 + audio)
VGA connector
128 x 32 OLED
User LEDs

6.User Inputs
Slide switches
Push button switches

7.Audio
24-bit stereo audio CODEC
Stereo line in/out
Headphone
Microphone input

8.Analog
Xilinx XADC header
Supports 4 analog inputs
2 Differential / 4 Single-ended

9.Debug/Programming
On-board USB JTAG programming port
ARM Debug Access Port (DAP)

10.Power
12V DC input @ 3.0 A (Max)

11.Dimensions
Length: 6.3 inches
Width: 5.3 inches

12.Certification
CE and RoHS certified

Target Applications:
.Video processing
.Motor control
.Software acceleration
.Linux/Android/RTOS development
.Embedded ARM processing
.General Zynq-7000 EPP prototyping

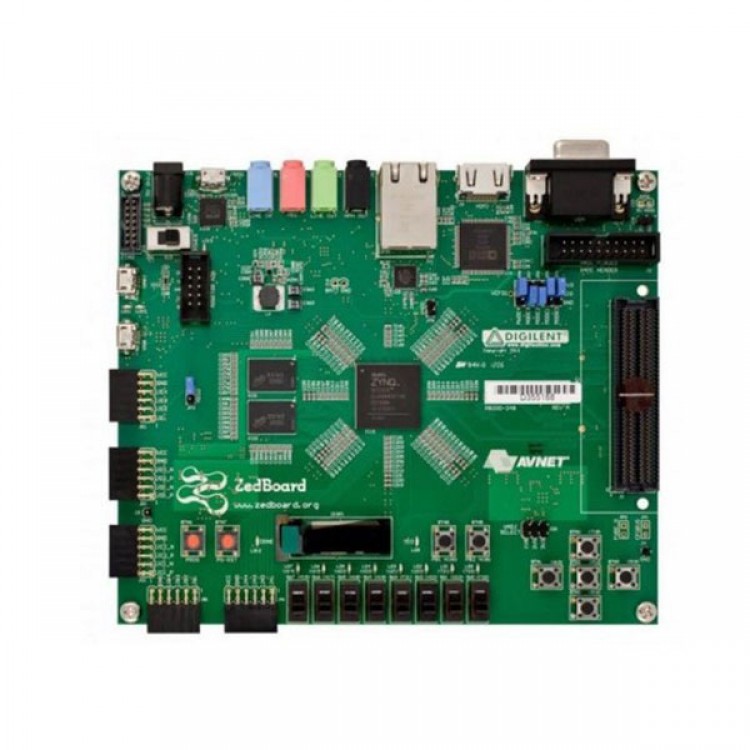

ZedBoard is a low-cost development board for the Xilinx Zynq-7000 Extensible Processing Platform (EPP). This board contains everything necessary to create a Linux, Android, Windows or other OS/RTOSbased design. Additionally, several expansion connectors expose the processing system and programmable logic I/Os for easy user access.

Take advantage of the Zynq-7000 EPP’s tightly coupled ARM? processing system and 7 series programmable logic to create unique and powerful designs with the ZedBoard. The ZedBoard kit is supported by the www.zedboard.org community website where users can collaborate with other engineers also working on Zynq designs.
