|Quantity||3+ units||10+ units||30+ units||50+ units||More|
|Price /Unit||$33.28||$32.60||$31.58||$30.22||Contact US|

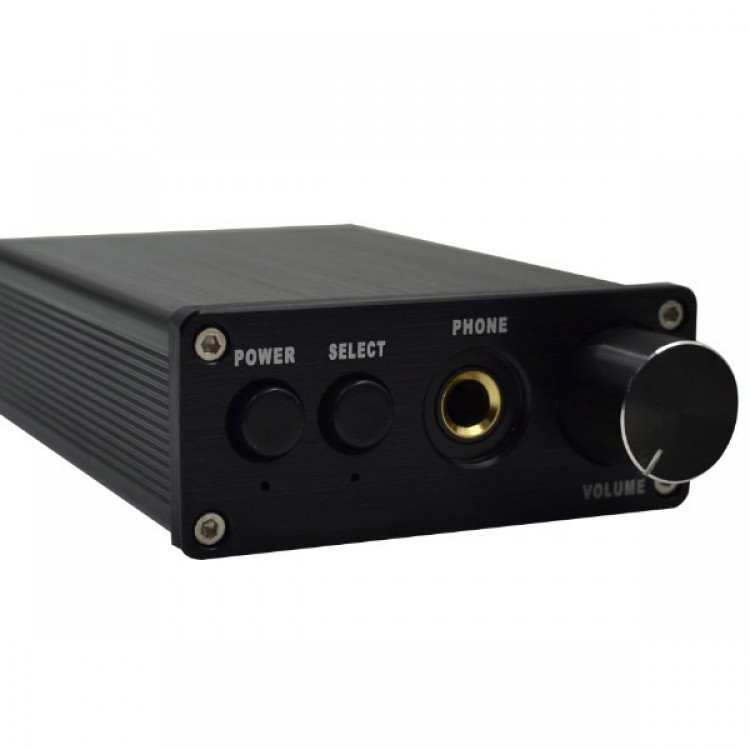

ZHI LAI T6 Aluminum Audio Decoder DAC Headphone Amplifier Fiber Coaxial Signal Input 24BIT96KHZ Black
- T6 applies NICHICON · ERO · WIMA · VISHAY · BB · P H I L I P S · AV · ELNA · DALE and other senior high-quality machine parts. With optical / coaxial input signal to turn into an analog signal output, headphone output.
- The main chip set: DIR9001 + PCM1793 + OPA2134, classic match, superior sound.
- With audio input switch, optical / coaxial audio input, switch freely.
- T6 takes aluminum housing, high-precision machining CNC , drawing oxidation, the font used in all laser engraving made, never fade, bring you excellent operating.
- T6 decoder uses the current top digital receiver chip DIR9001, can receive signals that is up to 24bit / 96K. - DIR9001 digital audio receiver of the jitter.
- DAC decoding part is the world's best D / A decoder chip one PCM1793 (192K / 24BIT digital-to-analog conversion chip). Output using an active low-pass filter - line package OPA2134 (like DIY friends can replace this IC tone sounds).
- With a headphone output, headphone amplifier part is WIMA coupling capacitors with expensive, high-quality materials, perfect sound quality output that can drive the mainstream low-impedance headphones fever, 60mW @ 16Ohm, 120mW @ 32Ohm.
- T6 decoder can be used in a computer with a coaxial or optical interfaces, LCD TV, CD, DVD, MD and other audio equipment.
- Input: Coaxial / Optical (with switch)
- Input Frequency: 44.1,48,96KHZ / 16 / 24BIT
- SNR:> 113db
- Dynamic range: 105db
- Distortion: 1KHZ% 0.0006 or less
- Rated output: 1.7VPP
- Frequency response: 20-20KHz (-0.2db)
- Total power <8W
- Headphone output power: 65mW @ 16Ω; 130mW @ 32Ω
- Headphone output distortion: 0.01%THD+N@100mW/32Ω
- Machine dimensions: 128x77x35mm (excluding protrusions)
- Weight: 0.5Kg (other than the actual shipping weight packaging structures date)
- Color: Black
- 1 x ZHI LAI T6 Audio Decoder DAC Headphone Amplifier
- 1 x Power adapter
- 1 x Headphone adapter plug
