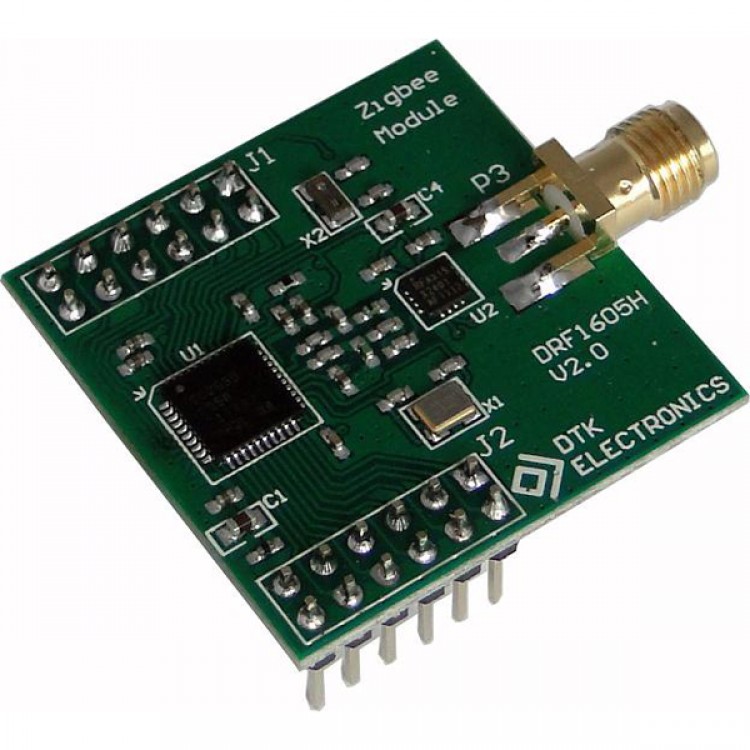

ZigBee Module RS232 Board & Debug Interface CC2530F256 Chip 1.6KM
Create network automatically
At the first using, when DRF1600 Zigbee Module power on, the Router can search and join network automatically, after the first using, all the network point can keep this network status, no mater you turn on of turn off these points, all of them will keep in the network.
Very easy to use
At the most situations, two Zigbee points just as one RS232 (or UART) cable, using Zigbee Module not need driver or API.
Simply data transmission
The data received from UART at Coordinator can send to all point automatically.
The data received from UART at Router can send to Coordinator automatically.
Data transceiver can be at any points, just need one instruction.
- Input Voltage: DC 5V - 12V
- Working Temperature: -40C - +85C
- UART Rate: 38400bps(Default), can select 9600, 19200, 38400, 57600, 115200
- Frenquency: 2.4GHz
- Transmiter Protocol: Zigbee 2007/PRO
- Transmiter Distance: 400M
- Send Current: 34MA (Max)
- Receive Current: 25MA (Max)
- Receive Sensitive: -96dBm
- Main Chip: TI CC2530F256, 256K Flash, peal Zigbee 2007 protocl
