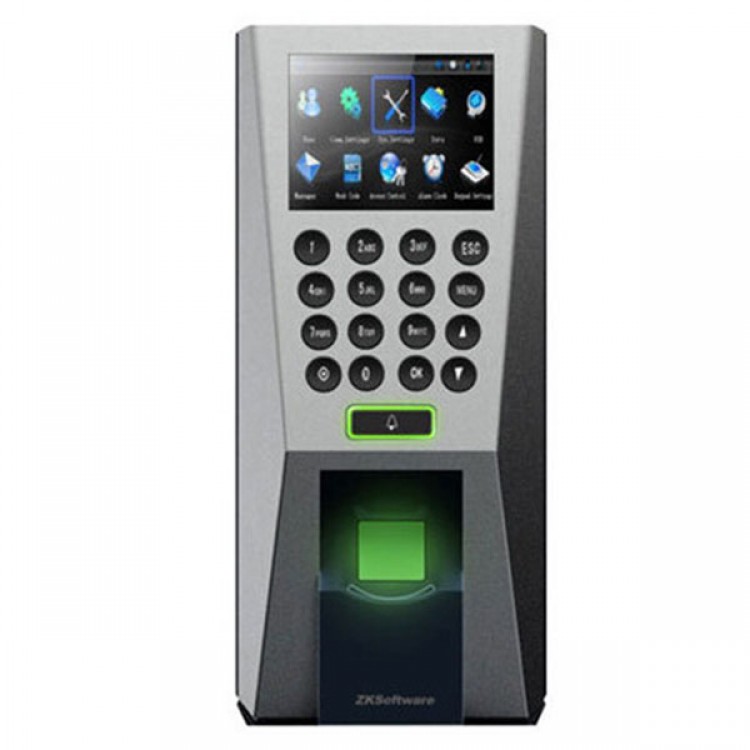

ZKsoftware F18 2.4" TFT RFID Fingerprint Time Attendance Clock+Access Control

ZKsoftware F18 2.4" TFT RFID Fingerprint Time Attendance Clock+Access Control

Introduction:
F18 is an innovative biometric fingerprint reader for access control applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The F18 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality optical fingerprint sensor. The device offers the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand. All the operation can be done on the TFT-LCD. The fingerprint image will display on the screen . That will guide the user to put the finger on to proper position and increase the recognition rate.
TCP/IP and RS485 are available that the device can be used in different network.

Features:
Fingerprint reader with durable and highly accurate ZK optical sensor
1 touch a-second user recognition
Stores 1,500 templates, 5,000 cards and 30,000 transactions
Reads Fingerprint and/or rfid Card;
Built-in Serial and Ethernet ports
Tamper-proofs switch and alarm outputs
Request-to-exit and alarm contacts
Audio-Visual indications for acceptance and rejection of valid/invalid fingers

Specifications:
Fingerprint Capacity:1500 templates
ID card Capacity:RFID Function Included in
Transaction Capacity:30,000
Sensor:ZK Optical Sensor
Algorithm Version:ZK Finger v10.0
Communication:RS232/485, TCP/IP, USB-host
Access Control Interface for:3rd party electric lock, door sensor, exit button, alarm, Door Bell
Wiegand Signal:Output and Input
Display:TFT LCD Screen
Standard function:Webserver, DLST
Power Supply:12V DC
Operating Temperature:0 C- 45C
Operating Humidity:20%-80%
